Arduino Nano V3.0 ATMEGA328P development board
SKU: ARD-0065-M01
Sold by Select Automation
Final price R 315.99
R 274.77 excl. VAT
Availability: In Stock (7 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

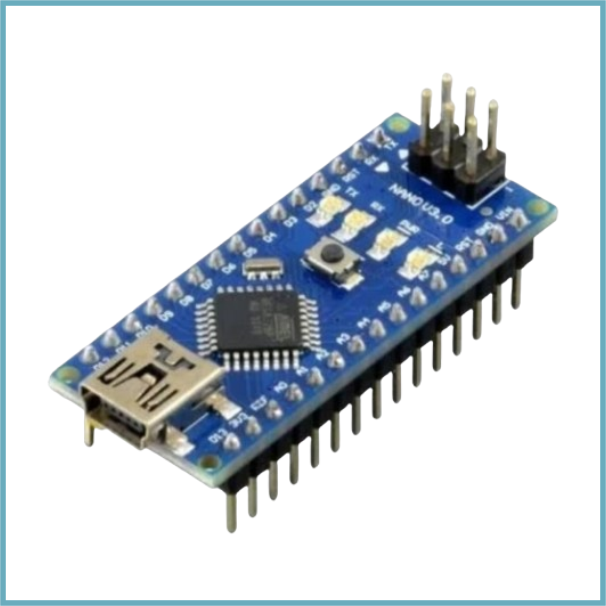

Arduino Nano V3.0 ATMEGA328P development board
Based on the ATmega328, the Arduino Nano is a compact, feature-rich, and breadboard-friendly board.
With a different packaging, it offers nearly the same capabilities as the Arduino Duemilanove.
It only loses a DC power jack and uses a Mini-B USB cable rather than a regular one.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
MCU: ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7-12V
Input Voltage (limit): 6-20 V
Digital I/O Pins: 14 of which 6 provide PWM output
Analog Input Pins: 8
DC Current per I/O Pin: 40 mA
Flash Memory: 32 KB (ATmega328) of which 2 KB used by bootloader
SRAM: 2 KB (ATmega328)
EEPROM: 1 KB (ATmega328)
Clock Speed: 16 MHz
Dimensions: 0.73″ x 1.70″
This board uses the FT232RL serial chipset.
