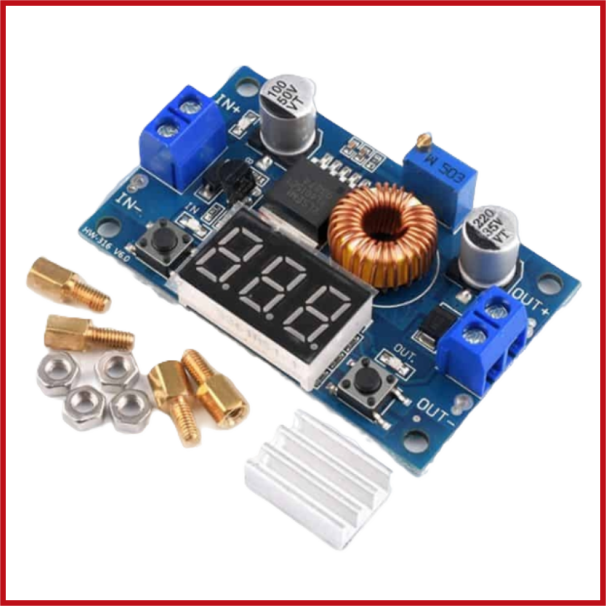

XL4015 75W High Power Step Down Convertor with Display
SKU: ARD-0076-M01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The XL4015 75W High-Power Step-Down Converter is an adjustable DC-DC buck converter that transforms a higher DC input voltage into a lower adjustable output voltage.
It includes a built-in digital voltmeter that can show either the input or output voltage, making it ideal for variable power supply applications.
The module includes current limiting, thermal shutdown, and output short-circuit protection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: DC-DC Step-Down Converter Module.
Converter Type: Buck / Step-Down.
Input Voltage: 4–38 V DC.
Recommended Minimum Input Voltage: 4 V DC.
Output Voltage: 1.25–36 V DC, adjustable.
Output Current: 0–5 A.
Recommended Continuous Current: Up to 4.5 A for extended operation.
Maximum Output Power: 75 W.
Conversion Efficiency: Up to 96%.
Switching Frequency: 180 kHz.
Voltmeter Range: 4–40 V.
Voltmeter Accuracy: ±0.1 V.
Display: Digital 7-segment LED.
Display Function: Input / Output voltage selection.
Protection: Thermal shutdown, current limiting and output short-circuit protection.
Adjustment: Onboard potentiometer.
Module Type: Non-isolated DC-DC converter.
Applications: Adjustable power supplies, Arduino projects, LED applications, battery-powered equipment, motor controllers, embedded electronics, robotics and general DC voltage conversion.
