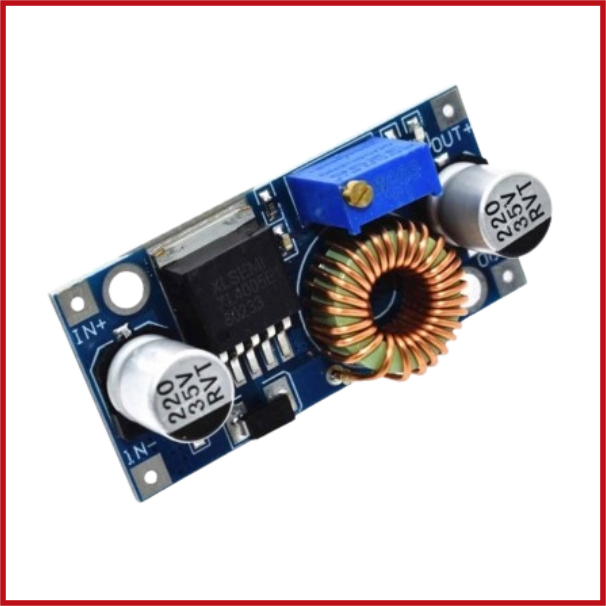

XL4005 DSN5000 DC-DC adjustable step-down 5A power Supply module
SKU: ARD-0078-M01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The XL4005 DSN5000 is a tiny DC-DC buck (step-down) converter module that converts a greater DC input voltage to an adjustable lower DC output voltage.
It employs the XL4005 switching regulator and is appropriate for powering Arduino projects, embedded electronics, communication equipment, automotive applications, and other DC-powered circuits.
The module has configurable output voltage and a high conversion efficiency.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: DC-DC Adjustable Step-Down Converter.
Converter Type: Buck / Step-Down.
Input Voltage: 5–32 V DC.
Output Voltage: 0.8–24 V DC, adjustable.
Output Current: Up to 5 A peak.
Recommended Continuous Current: 2.5–3.5 A depending on cooling.
Maximum Output Power: Up to 75 W with adequate cooling.
Conversion Efficiency: Up to approximately 90%.
Switching Frequency: 300 kHz for the XL4005 IC; some module listings specify 180 kHz.
Minimum Dropout: 0.6 V.
Output Ripple: 30 mV maximum.
Protection: Over-current, short-circuit and thermal protection.
Adjustment: Onboard potentiometer.
Module Type: Non-isolated DC-DC converter.
Applications: Arduino projects, embedded systems, DIY power supplies, automotive electronics, communications equipment, battery-powered equipment, LED applications and general DC voltage conversion.
