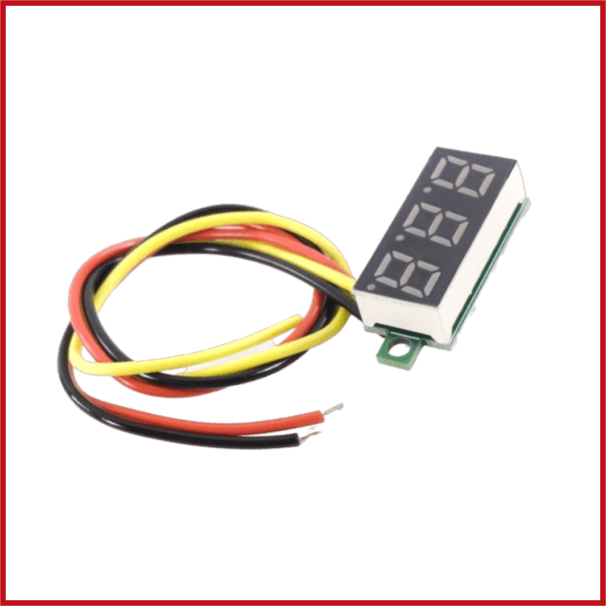

0.28 inch 3 wire Digital Voltage Meter DC0-100V Red
SKU: ARD-0083-M01
Price on request
Availability: In Stock (20 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
0.28 inch 3 wire Digital Voltage Meter DC0-100V Red
This voltmeter can be used to determine the voltage and condition of the storage battery in vehicles and motorbikes.
Other voltages can also be measured using it.
The maximum operational voltage of the voltmeter is 30V; thus, when operating, please allow sufficient margin to prevent irreversible damage to the voltmeter from an electrical spark, ripples in the power supply, or other very high abrupt voltage changes.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display mode: Three 0.28 LED digital tube
Display color: Red
Update Rate: About 500 ms/time
Physical size: 30 x 12 x 8.5 mm (L*W* H, including installation ear)
Lead wire length: 10 cm
The minimum input : 3.50V
The maximum input : 30V
Measurement range : DC3.50 - 30V
Operation temperature: -10 degrees~65 degrees
Measurement accuracy : plusmn (1% + 2 Digit)
Mounting holes distance : 26mm
Red line : Power Supply +,Measure Voltage +,(3.50-30V DC)
Black line : Power Supply -, Measure Voltage
