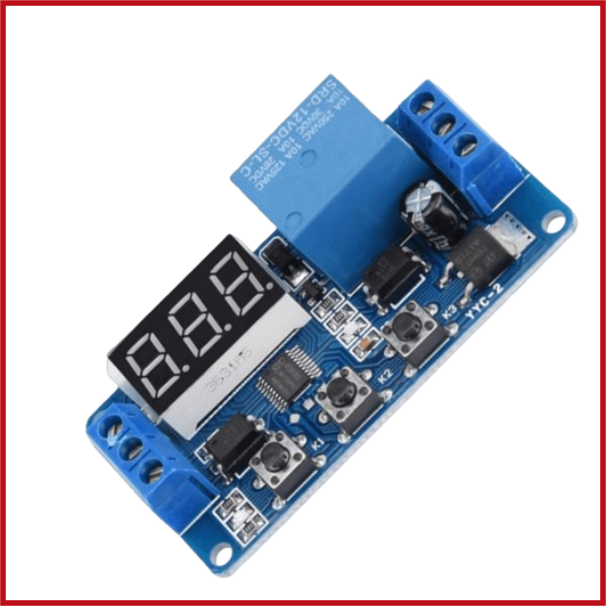

1 channel Delay timer control switch relay module 12V
SKU: ARD-0084-M01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
1 channel Delay timer control switch relay module 12V
It can fulfill additional application needs thanks to its many functionalities. enhanced power support for the anti-reverse connection feature.
An optical coupler that separates the input and output improves the device's capacity to resist interference.
It is possible to establish parameters in the event of a power outage.
Class PLC, Industrial Grade Circuit Board, High Stability.
A voltage signal can be held at the signal terminal for a very long period.
Outstanding performance with minimal power usage.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: Plastic
Weight: 26g / 1oz
Voltage: 12V
Relay Capacity: AC 220V 10A or DC 30V 10A
Static current: 20mA
Operating current: 50mA
Signal Voltage: 4V - 20V
Operating Temperature: -40 to 85
Size: 64.2 * 34.8 * 18.5mm / 2.5 * 1.4 * 0.1in
