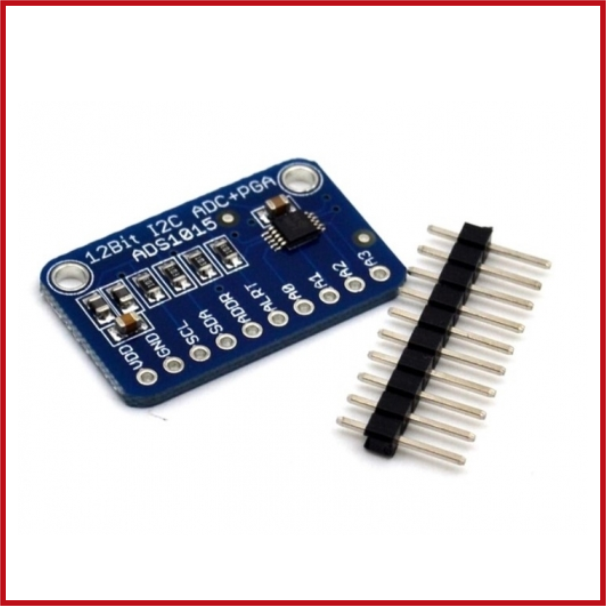

12 bit-precision ADS1015 ADC development board
SKU: ARD-0088-M01
Price on request
Availability: In Stock (20 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The ADS1015 12-bit Precision ADC Development Board is a high-accuracy analog-to-digital conversion module based on the Texas Instruments ADS1015 chip.
It is designed to interface analog sensors with digital systems such as microcontrollers (Arduino, ESP32, Raspberry Pi), enabling precise measurement of voltage signals in data acquisition and embedded monitoring applications.
ADS1015 12-bit ADC Development Board.
This module features a 12-bit resolution ADC, providing reliable conversion of
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
ADC Resolution: 12-bit (0–4095 counts).
Interface: I²C (SDA, SCL).
Supply Voltage (VDD): 2.0V – 5.5V.
Input Voltage Range: Adjustable via programmable gain amplifier (PGA).
Number of Channels:
4 single-ended inputs.
2 differential inputs.
Sampling Rate: Up to 3300 samples per second (SPS).
Programmable Gain (PGA): Yes (amplifies small signals for better accuracy).
Internal Reference Voltage: Yes.
Operating Temperature Range: -40°C to +125°C.
