DC-DC up and down module input, wide voltage adaptation
SKU: ARD-0090-M01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

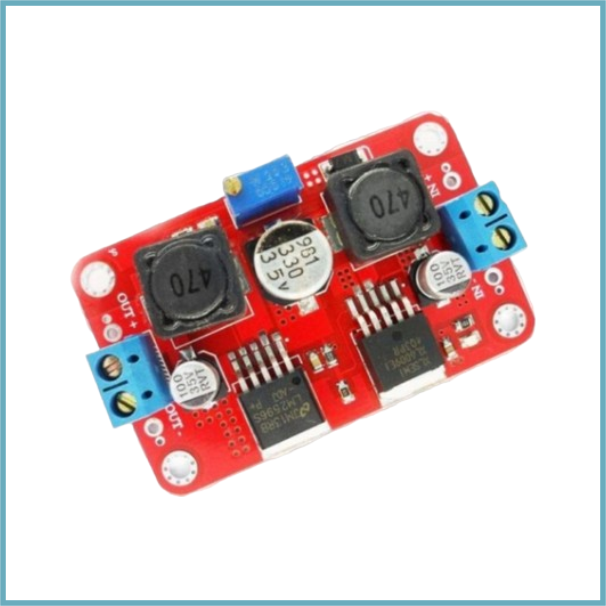

DC-DC up and down module input, wide voltage adaptation
A step-up, step-down, buck-boost converter board, as stated in the description, maintains a pre-set voltage regardless of whether the voltage is above (step-down) or below (step-up) the pre-set value.
It functions particularly well in situations when the power source is wildly fluctuating, such as solar panels.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Voltage: 6V to 40V DC.
Output Voltage: Adjustable from 1.2V to 36V DC.
Output Current: Up to 20A (recommended: 15A for continuous use).
Efficiency: Up to 95–96%.
PWM Frequency: 400kHz.
Control IC: XL6009, LM2577, MCP19061, or similar.
Protection: Over-current, thermal, reverse polarity (varies).
Cooling: Dual heatsinks or aluminium casing.
Applications: Battery charging, solar systems, robotics, LED drivers.
