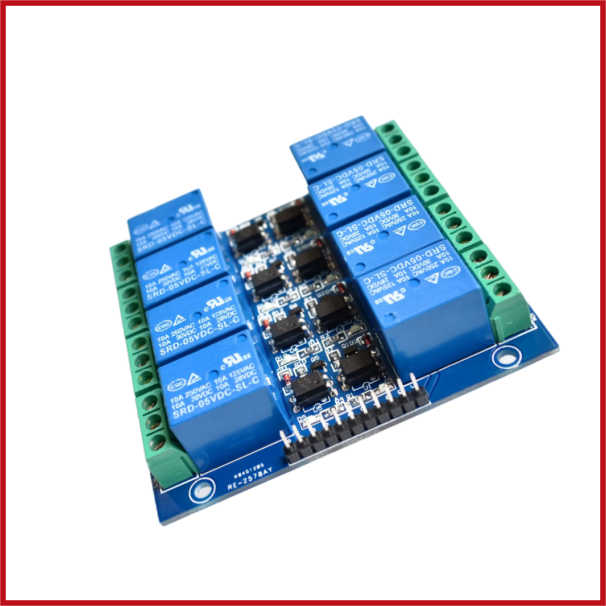

8-way relay module/5V10A optocoupler isolated anti-interference EL817 optocoupler
SKU: ARD-0092-M01
Price on request
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 8-Way Relay Module is a 5V relay control board intended for microcontroller and automation applications.
It offers superior anti-interference performance and electrical isolation between the control circuit and load circuit thanks to its eight independent relays with EL817 optocoupler isolation.
The module may be controlled directly from Arduino, Raspberry Pi, ESP32, STM32, PIC, and other microcontroller platforms, making it perfect for home automation, industrial control, robotics, and smart device applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Relay Quantity: 8 Channels.
Operating Voltage: 5V DC.
Trigger Voltage: 3.3V–5V Compatible.
Optocoupler Model: EL817.
Relay Contact Rating: 10A 250VAC.
Relay Contact Rating: 10A 30VDC.
Trigger Type: Low-Level Trigger.
Isolation Type: Optocoupler Isolation.
Relay Type: SPDT (Single Pole Double Throw).
Control Interface: Digital Input.
Channel Indicator LEDs: 8.
Power Indicator LED: Yes.
Output Terminals: COM, NO, NC per Relay.
Mounting Holes: Yes.
PCB Material: FR-4 Fiberglass.
Dimensions: 138 × 56 × 18 mm.
Operating Temperature: -20°C to 70°C.
