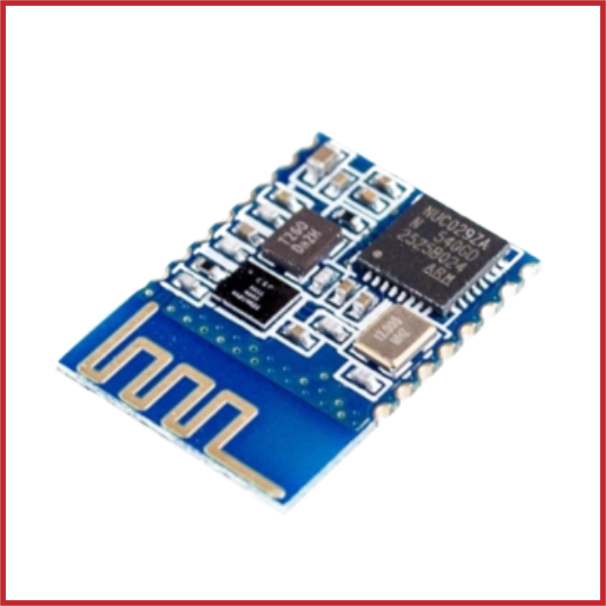

Bluetooth BLE Module 4.0 HM13 HM-13 Dual Mode BLE SPP Serial
SKU: ARD-0093-M01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The HM-13 Bluetooth 4.0 BLE Module is a small wireless serial communication module ideal for Arduino and other microcontroller projects.
It supports Bluetooth Low Energy and serial transmission, allowing compatible devices to share data wirelessly.
The module can operate in both BLE and serial mode and is ideal for wireless control, sensor data transmission, robotics, automation, and IoT applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
BT Version: Bluetooth Specification V4.0 & BLE.
UART send and receive max bytes is 512.
SPP mode: 60 Bytes per packet.
BLE mode: 20 Bytes per packet.
Two data transmission modes.
Working frequency: 2.4GHz ISM band.
Modulation method: GFSK.
RF Power: -23dbm, -6dbm, 0dbm, 6dbm.
Speed: Asynchronous: 2-6K Bytes.
Synchronous: 2-6K Bytes.
Security: Authentication and encryption.
Power: +3.3VDC 50mA.
Long range: SPP 30 meters, BLE 60 meters.
Power: SPP 13.5mA, BLE 9.5mA.
Working temperature:–5° ~ +65°C.
