6V-90V 15A PLC PWM DC motor speed control controller CCMHCN DC
SKU: ARD-0094-M01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

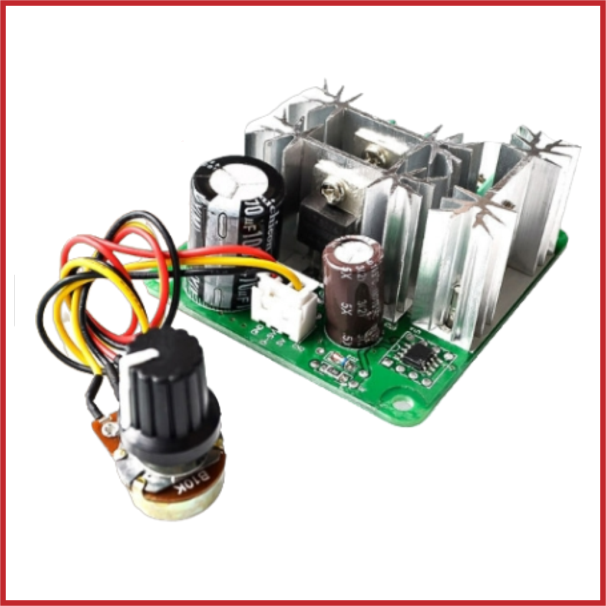

The CCMHCN PWM DC Motor Speed Controller is a high-power adjustable controller that regulates the speed of DC motors between 6 V and 90 V DC.
It employs pulse-width modulation (PWM) to achieve smooth speed adjustments from 0% to 100%.
The controller features a rotary control knob and can accept an external 0-5 V control signal, making it appropriate for both manual and PLC-controlled applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operating Voltage: DC 6V-90V(Wide range voltage)
This engine speed control switch can control the
engine speed from 0%-100%
Controlled Power: 0.01-1000W
Control Power: 6V*8A=48W,12V*8A=96W,……90V*8A=720W
Rated Current:8A
Max. Current: 15A
Quiescent Current: 0.005 A (Standby)
PWM Duty Cycle: 0% -100%
PWM Frequency: 16kHz
Control Voltage: 0-5V.
