RS422 TTL Two-way Signal Convert Module 5V (Not soldered)
SKU: ARD-0096-L01
Sold by Select Automation
Final price R 146.07
R 127.02 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

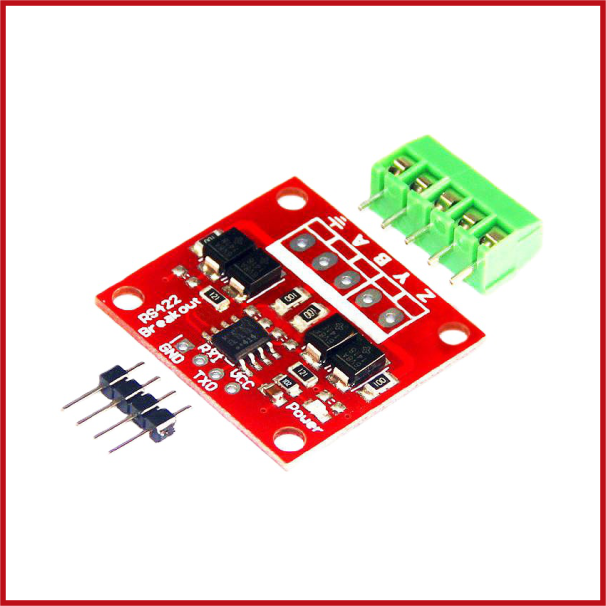

The Arduino RS422 TTL Two-Way Signal Convert Module facilitates communication between devices that use the RS422 and TTL signal standards.
This module is ideal for long-distance, high-speed data transmission in industrial and communication applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Chipset: uses the MAX490 chip.
Voltage: Operates at 5V DC.
Data Rate: Supports data rates up to 2.5 Mbps.
Transmission Distance: Up to 1000 meters.
ESD Protection: 15KV.
Current Limiting Resistor: 10 ohms for overcurrent protection.
Termination Resistor: 120 ohms to reduce communication echo interference.
Indicators: Power indicator and data transceiver indicator.
Dimensions: 5.0 cm x 2.7 cm.
Connectivity: RXD, TXD, 5V, GND pins for TTL side; A, B, Y, Z pins for RS422 side.
