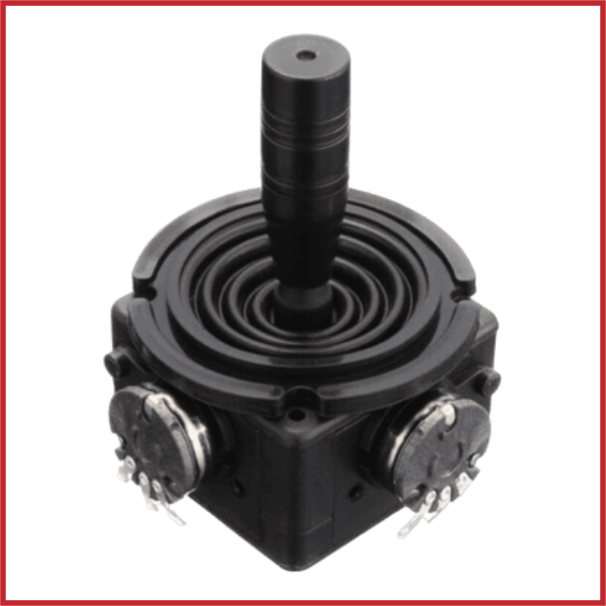

Arduino 5K Joystick
SKU: ARD-0104-L01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Arduino 5K Joystick is a small two-axis analog joystick module made for Arduino and other microcontroller projects.
The device detects movement along the X and Y axes via two 5 kΩ potentiometers.
Furthermore, an integrated push button offers digital input.
The joystick returns analog values based on its position, making it ideal for robotics, gaming controls, menu navigation, and motor control.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Resistance Value: Standard 5KΩ.
Resistance Tolerance: ±20%.
Independent Linearity: ±1%.
Resolution: Essentially Infinite.
Temperature Coefficient of Resistance: ±400 ppm/°C.
Output Smoothness: 0.5% max.
X & Y Axis Electrical Angle: ±25°.
Z-Axis Electrical Angle: ±45°.
Insulation Resistance: 50MΩ, 500VDC, 60 sec.
Working Torque: X and Y axis 90gf and 250gf, Z axis 330gf.
Restoration Error Rate: ±0.03KΩ.
Prolepsis Mechanical Life Cycle: 500,000 cycles.
Working Temperature Range: -10~80°C.
