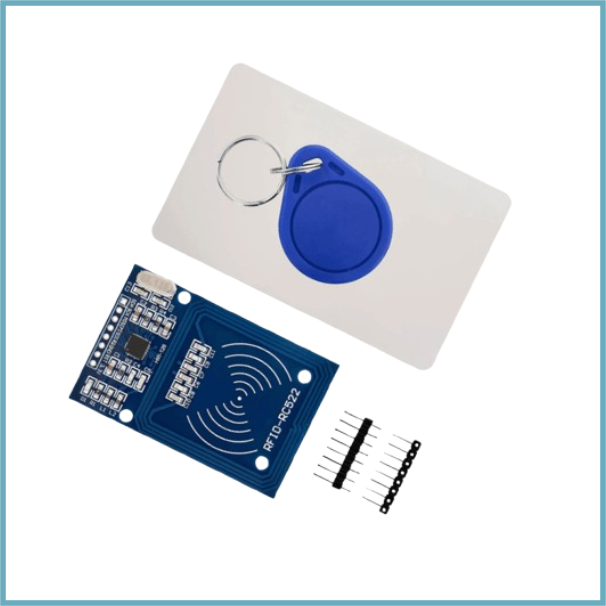

RFID Module
SKU: ARD-0107-L01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Contactless reader and writer card chip, as well as the unique combination of functions and applications in the new technologies of automation and artificial intelligence.
Powered by the reader's power source, thus no batteries are required.
This implies that tags have the potential to be extremely small, even small enough to be integrated into tiny devices.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Current :13-26mA / DC 3.3V
Idle Current :10-13mA / DC 3.3V
Sleep current: 80uA
Peak current: 30mA
Operating Frequency: 13.56MHz
Supported card types: S50, S70, Ultralight, Pro, DESFire
Product Physical Characteristics: Dimensions: 40mm × 60mm
Environmental Operating temperature: -20-80 degrees Celsius
Environment Storage temperature: -40-85 degrees Celsius
Relative Humidity: 5% -95%
Data Transfer Rate: Max. 10Mbit / s
