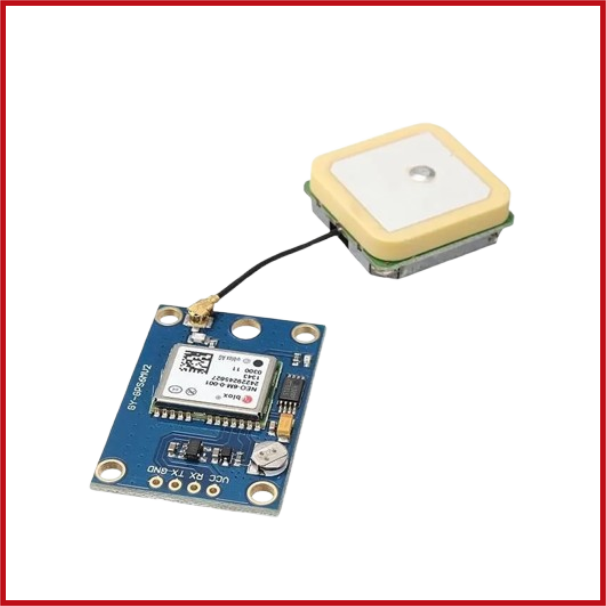

Neo-6m GPS Module with EEPROM for C/AeroQuad
SKU: ARD-0115-L01
Sold by Select Automation
Final price R 86.85
R 75.52 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NEO-6M GPS Module is a small standalone GPS receiver that runs on the u-blox NEO-6M GPS engine.
It communicates positioning, navigation, and timing data via a UART serial interface and is widely used in Arduino, flight controller, robotics, and Aero Quad projects.
The module version with an internal EEPROM may save configuration options, and a rechargeable backup battery helps keep satellite data for speedier warm starts.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: GPS Receiver Module.
GPS Engine: u-blox 6.
Receiver Type: 50-channel GPS engine.
GPS Signal: L1 C/A.
SBAS Support: WAAS / EGNOS / MSAS.
Position Accuracy: 2.5 m CEP.
SBAS Position Accuracy: 2.0 m CEP.
Navigation Update Rate: Up to 5 Hz.
Cold Start: 27 seconds.
Warm Start: Less than 3 seconds.
Hot Start: 1 second.
Tracking Sensitivity: -162 dBm.
Cold Start Sensitivity: -147 dBm.
Hot Start Sensitivity: -156 dBm.
Communication Interface: UART / TTL.
Default Baud Rate: 9600 baud on common breakout boards.
Supported Baud Rates: 4800, 9600, 19200, 38400, 57600, 115200 and 230400 baud.
Supply Voltage: 3.3–5 V DC for breakout boards.
Operating Current: 45 mA for module boards.
Memory: Onboard EEPROM for configuration storage.
Backup: Rechargeable backup battery.
Antenna: Ceramic GPS antenna on breakout module.
External Antenna: IPX connector on compatible versions.
Compatible Platforms: Arduino, ESP32, STM32, Raspberry Pi and other UART-equipped microcontrollers.
Applications: GPS positioning, navigation, vehicle tracking, robotics, drones, Aero Quad flight controllers, telemetry and Arduino projects.
