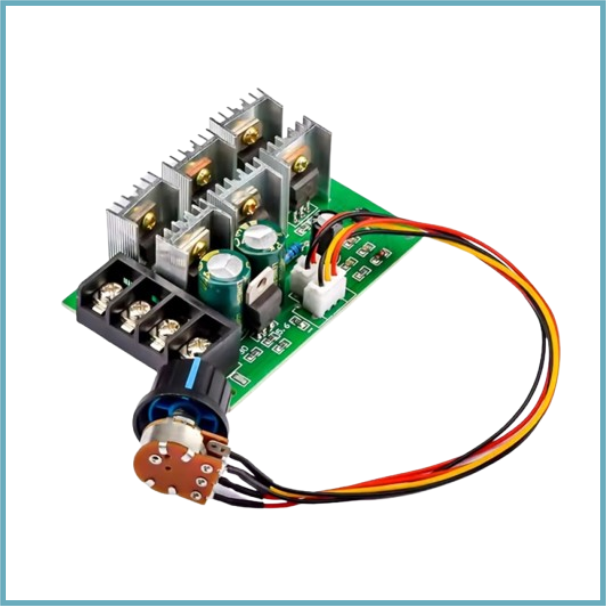

40A PWM DC Speed Control, Control 9-50VDC. 2000W
SKU: ARD-0119-L01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 40A PWM DC Speed Controller is a high-power controller that uses pulse width modulation (PWM) technology to control the speed of brushed DC motors.
It maintains high torque at low speeds and offers smooth, effective, and flexible motor speed control when operating between 9 and 50 V DC.
The controller is perfect for automation, industrial, and do-it-yourself applications since it has a rotary potentiometer with an integrated ON/OFF switch.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Motor Type: Brushed DC Motors Only.
Operating Voltage: 9–50V DC.
Maximum Output Current: 40A.
Continuous Operating Current: 20A (recommended without additional cooling).
Maximum Power: 2000W.
Speed Control Range: 0–100%.
PWM Frequency: 25 kHz.
Control Method: PWM (Pulse Width Modulation).
Control Interface: Rotary Potentiometer with ON/OFF Switch.
Connections: Screw Terminal Blocks.
Operating Temperature: -20°C to +40°C.
Dimensions: 83 × 56 × 26 mm.
