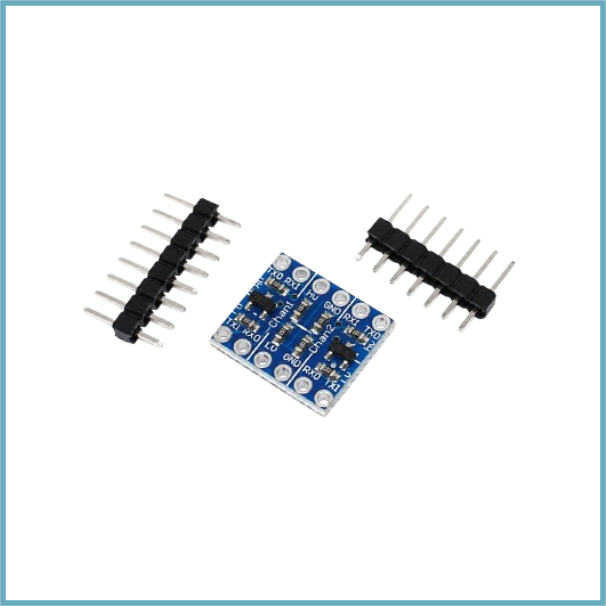

Logic Level Shifter md 0237
SKU: ARD-0121-L03
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A small 2-channel bidirectional logic level converter, the Logic Level Shifter Module MD0237 is intended to facilitate communication between devices running at various logic voltages, such as 3.3 V and 5 V systems.
It is perfect for connecting sensors, displays, and communication modules to Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and other microcontrollers because it securely translates digital signals in both directions.
The module is breadboard-friendly and requires no direction control, making it straightforward to integrate into embedded and prototype designs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: MD0237.
Product Type: 2-Channel Bidirectional Logic Level Shifter.
Signal Translation: 3.3 V ↔ 5 V TTL Logic.
Number of Channels: 2.
Logic Direction: Bidirectional (Automatic).
Low Voltage (LV): 3.3 V.
High Voltage (HV): 5 V.
Operating Voltage Range:
LV Side: 2.8–3.6 V.
HV Side: 4.5–5.5 V.
Interface: TTL Digital Signals.
Mounting: Breadboard Compatible.
Module Dimensions: 16 × 16 × 11.5 mm.
