lcd2004-wb-5v Display
SKU: ARD-0125-L03
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

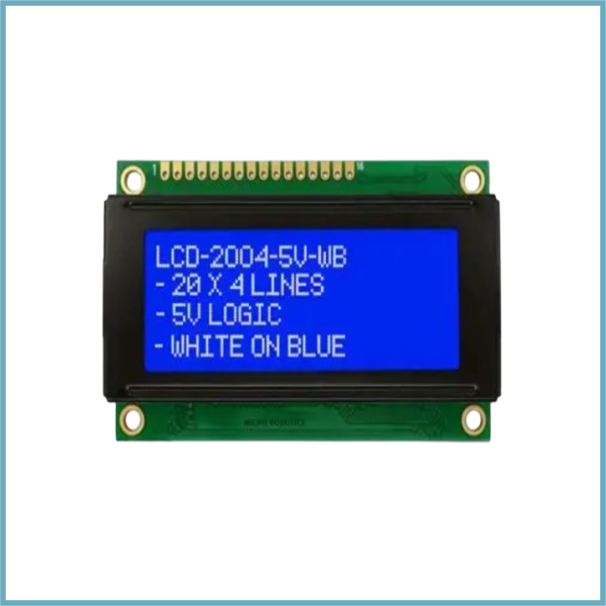

The LCD2004-WB-5V is a 20 × 4-character LCD module featuring white characters on a blue backlight.
It is compatible with Arduino, Raspberry Pi, STM32, PIC, AVR, and other microcontroller platforms because it employs the industry-standard HD44780 controller and a 16-pin parallel interface.
For embedded electronics, automation, and do-it-yourself projects, this display is perfect for displaying text, sensor readings, menus, and system status.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display Type: Character LCD
Display Format: 20 Characters × 4 Lines (20×4)
Controller IC: HD44780 Compatible
Interface: 16-pin Parallel (4-bit or 8-bit)
Operating Voltage: 5 V DC
Logic Level: 5 V
Text Colour: White
Backlight Colour: Blue
Display Area: 70.4 × 20.8 mm
Module Dimensions: 98 × 60 × 12 mm
Weight: 79 g
Viewing Mode: STN, Positive Transmissive
Operating Temperature: -20°C to +70°C
Pin Connections (Arduino UNO):
GND → GND.
VCC → 5V.
SDA → A4.
SCL → A5.
Applications: Arduino, Raspberry Pi, STM32, UI displays, sensor readouts.
