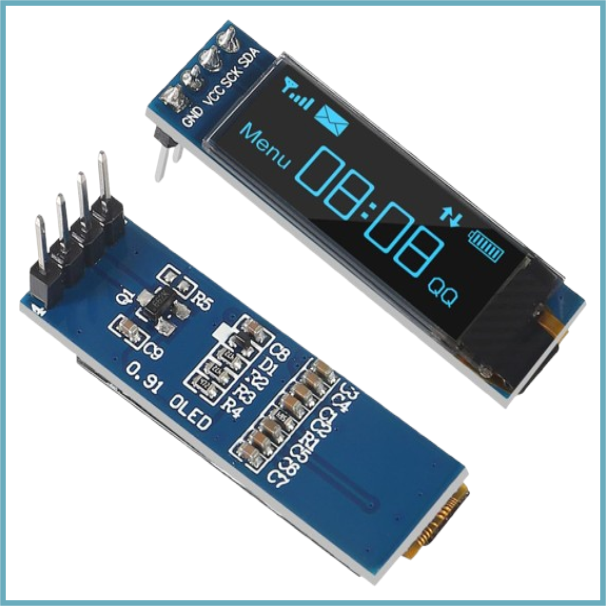

I2C Display Module 0.91 Inch I2C OLED Display Module I2C OLED Screen Driver DC 3.3V to 5V
SKU: ARD-0127-L03
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
For Arduino, Raspberry Pi, ESP32, ESP8266, and other microcontroller projects, the 0.91-inch I2C OLED Display Module is a small monochrome display.
It is perfect for showing text, images, sensor data, and system status in space-constrained applications because of its 128 × 32 pixel resolution and I2C interface, which only requires four connections (VCC, GND, SDA, and SCL).
The high contrast, high contrast, high contrast, high power technology, and viewing angles, and viewing angles, and watching, and viewing angles, and viewing, and viewing angles.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display Size: 0.91-inch diagonal.
Resolution: 128 × 32 pixels.
Driver IC: SSD1306.
Interface: I2C (IIC).
Operating Voltage: 3.3V to 5V DC.
Viewing Angle: Wide (>160°).
Pins: VCC, GND, SDA, SCL.
Display Colour: Blue.
Module Dimensions: 38.0 mm × 12.0 mm × 2.7 mm.
Viewing Area: 22.384 mm × 5.584 mm.
Operating Temperature: −40°C to +85°C.
Storage Temperature: −40°C to +85°C.
Display Mode: Passive Matrix OLED.
Structure: COG (Chip-on-Glass).
