Shield Based Multifunctional Expansion Board Kit For Arduino R3
SKU: ARD-0128-L01
Sold by Select Automation
Final price R 58.89
R 51.21 excl. VAT
Availability: In Stock (3 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

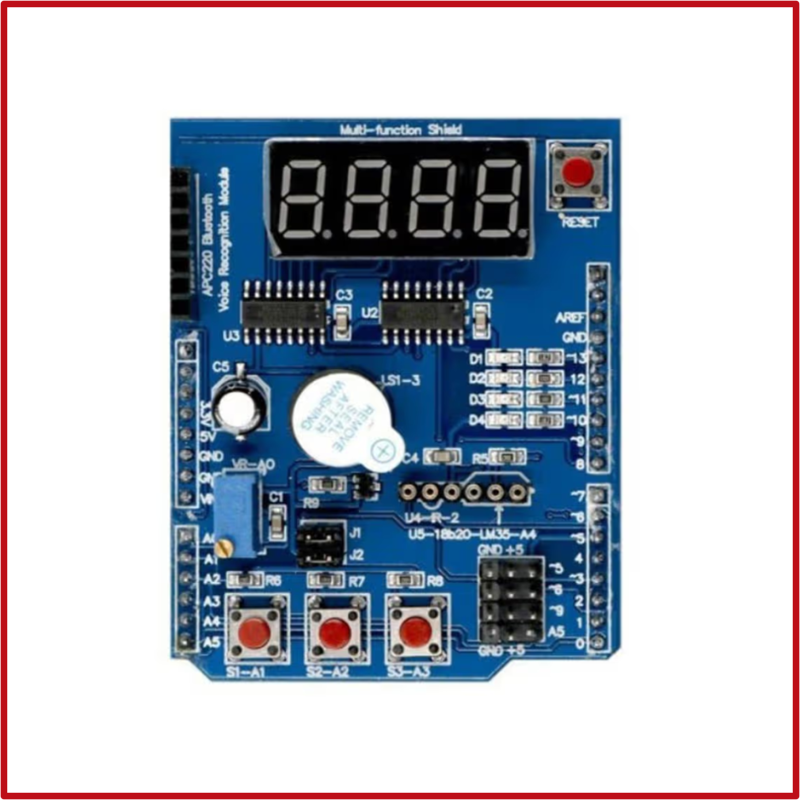

The Shield Based Multifunctional Expansion Board is a comprehensive development and prototyping shield for Arduino UNO R3-compatible boards.
It features a 4-digit 7-segment display, push buttons, LEDs, buzzer, potentiometer, RTC, and several expansion connectors on a single PCB, making it ideal for Arduino learning, testing, and rapid prototyping.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Multifunctional Arduino Expansion Shield.
Board Type: Multi-Function Development / Prototyping Shield.
Compatibility: Arduino UNO R3 and compatible UNO-form-factor boards.
Display: 4-digit 7-segment LED.
Display Driver: 74HC595 shift registers.
LED Indicators: 4.
Push Buttons: 3 programmable + 1 resets.
Potentiometer: 10 k Ω.
Buzzer: Piezoelectric.
RTC: DS1302.
RTC Battery: CR2032.
Temperature Sensor Interface: LM35 / DS18B20.
IR Receiver Interface: Supported.
Servo Interface: Supported.
Serial Interface: Supported.
Operating Voltage: 5 V DC.
Expansion: Arduino digital, analogue and power headers.
PCB Colour: Blue.
Board Dimensions: 75 × 56 mm.
Mounting: Arduino shield stacking headers.
Applications: Arduino programming, electronics education, prototyping, sensor experiments, timers, counters, displays, robotics, automation and DIY electronics.
