MP1584EN DC-DC Buck Converter
SKU: ARD-0136-L01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

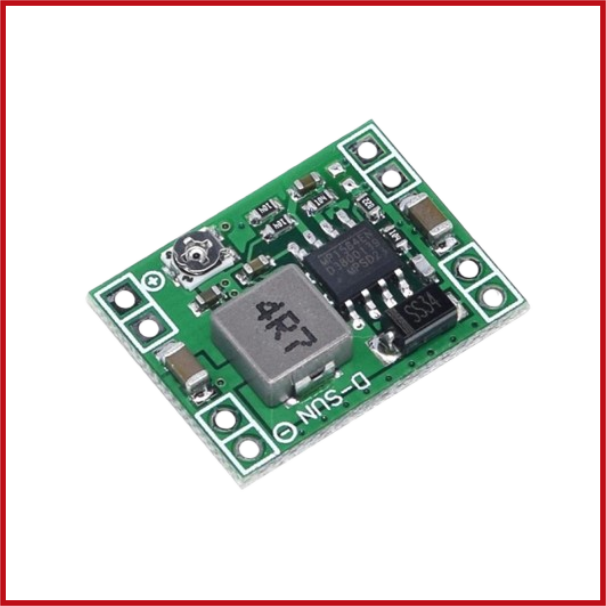

The MP1584EN DC-DC Buck Converter Module is a compact adjustable step-down power supply module that converts a larger DC input voltage to a lower controlled DC output voltage.
It employs the MP1584EN switching regulator and includes an onboard adjustable potentiometer for adjusting the desired output voltage.
Its compact size makes it ideal for Arduino projects, sensors, modules, and other space-limited electronics applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: DC-DC Buck Converter Module.
Regulator IC: MP1584EN.
Converter Type: Step-Down / Buck.
Input Voltage: 4.5–28 V DC.
Output Voltage: 0.8–20 V DC adjustable.
Maximum Output Current: Up to 3 A*.
Recommended Continuous Current: 1.5–2 A without additional cooling.
Switching Frequency: 1.5 MHz
Efficiency: Up to 96%, depending on input/output conditions.
Output Adjustment: Onboard potentiometer.
Protection: Over-temperature and over-current protection provided by the regulator IC.
Interface: VIN+ / VIN− / VOUT+ / VOUT−.
Applications: Arduino projects, sensors, microcontrollers, LED systems, battery-powered equipment, robotics, DIY electronics and embedded power supplies.
