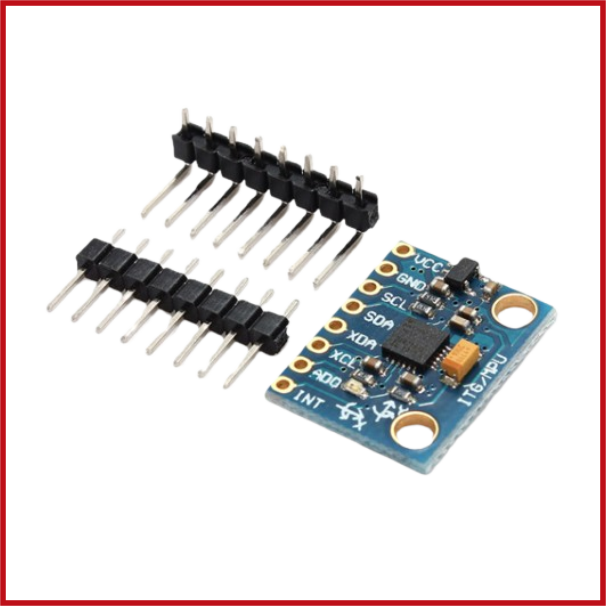

MPU-6050 6-AXIS SENSOR MODULE
SKU: ARD-0137-L01
Price on request
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The MPU-6050 6-Axis Sensor Module is a small motion-sensing module that has a 3-axis accelerometer and a 3-axis gyroscope.
It can detect acceleration, rotation, and orientation changes, making it ideal for Arduino, robotics, drones, balance systems, and motion-controlled projects.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: 6-Axis Motion Sensor Module.
Sensor IC: MPU-6050.
Sensor Functions: 3-Axis Accelerometer + 3-Axis Gyroscope.
Accelerometer Ranges: ±2g / ±4g / ±8g / ±16g.
Gyroscope Ranges: ±250 / ±500 / ±1000 / ±2000 °/s.
Communication Interface: I²C.
I²C Address: 0x68 / 0x69.
Operating Voltage: 3.3–5 V DC for breakout modules.
Logic Voltage: 3.3 V.
Axes: X / Y / Z.
Built-in Features: Digital Motion Processor (DMP), temperature sensor and programmable filters.
Module Interface: VCC / GND / SCL / SDA, with additional interrupt pins depending on module version.
Compatible Platforms: Arduino, ESP32, ESP8266, Raspberry Pi, STM32 and other microcontroller platforms.
Applications: Motion detection, orientation sensing, robotics, drones, balancing robots, gesture control, inertial measurement, gaming controllers and DIY electronics.
