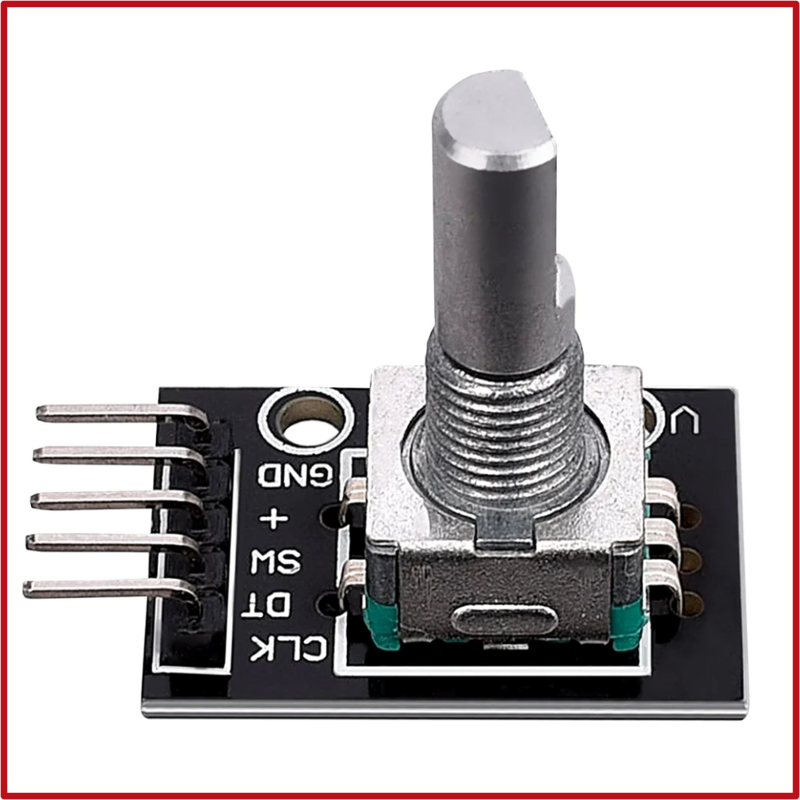

KY-040 Rotary Encoder Module for Arduino with Demo Code
SKU: ARD-0142-L01
Sold by Select Automation
Final price R 18.70
R 16.26 excl. VAT
Availability: In Stock (19 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The KY-040 Rotary Encoder Module is a small incremental rotary encoder ideal for Arduino and other microcontroller projects.
It detects the direction and amount of movement of the control knob and has a built-in push button switch.
The module is useful for menu navigation, parameter adjustments, volume control, motor control, and other applications that require rotational input.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Rotary Encoder Module.
Encoder Type: Incremental / Quadrature Rotary Encoder.
Rotation: Clockwise / Counter-clockwise.
Output Channels: A / B.
Push Button: Integrated.
Operating Voltage: 3.3–5 V DC.
Interface: CLK / DT / SW / + / GND.
Number of Pins: 5.
Output Type: Digital.
Switch Type: Momentary Push Button.
Resolution: 20 detents per revolution.
Compatible Platforms: Arduino, ESP32, ESP8266, Raspberry Pi, STM32 and other microcontroller platforms.
Applications: Menu navigation, parameter adjustment, volume control, motor control, robotics, automation, user interfaces and Arduino projects.
