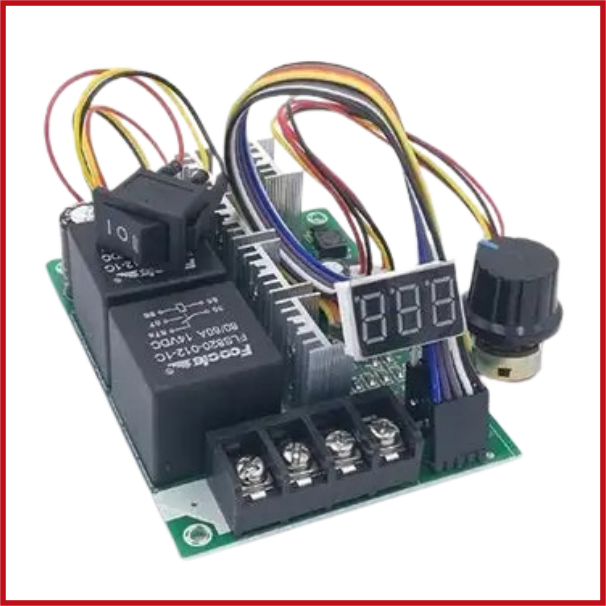

CMU PWM DC Motor Control 40A 9-60V WITH DISPLAY
SKU: ARD-0145-L01
Sold by Select Automation
Final price R 322.00
R 280.00 excl. VAT
Availability: In Stock (8 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The CMU PWM DC Motor Speed Controller 40A 9-60V with Digital Display is a high-power pulse width modulation (PWM) controller intended to offer smooth and efficient speed regulation for brushed DC motors.
With an input voltage range of 9V to 60V DC and a maximum output current of 40A, it is perfect for industrial equipment, home projects, electric vehicles, pumps, fans, and other high-current DC motor applications.
The integrated digital LED display clearly indicates the output speed setting, allowing for precise and repeatable motor control.
Using modern PWM technology, the controller reduces power loss while providing smooth speed adjustment and high torque at low speeds.
The controller's sturdy aluminium heatsinks, which effectively dissipates heat, guarantees dependable performance even in harsh operating environments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PWM DC Motor Speed Controller.
Brand: CMU.
Control Method: Pulse Width Modulation (PWM).
Input Voltage: 9–60V DC.
Output Voltage: 0–100% of Input Voltage (PWM Adjustable).
Maximum Continuous Current: 40A.
Maximum Output Power: 2400W.
Speed Adjustment Range: 0–100%.
Display: Digital LED Display.
Control Type: Rotary Potentiometer with Digital Readout.
Efficiency: Up to 98%.
Protection: Reverse Power Protection.
Cooling: Aluminium Heatsink.
Operating Temperature: -20°C to +60°C.
