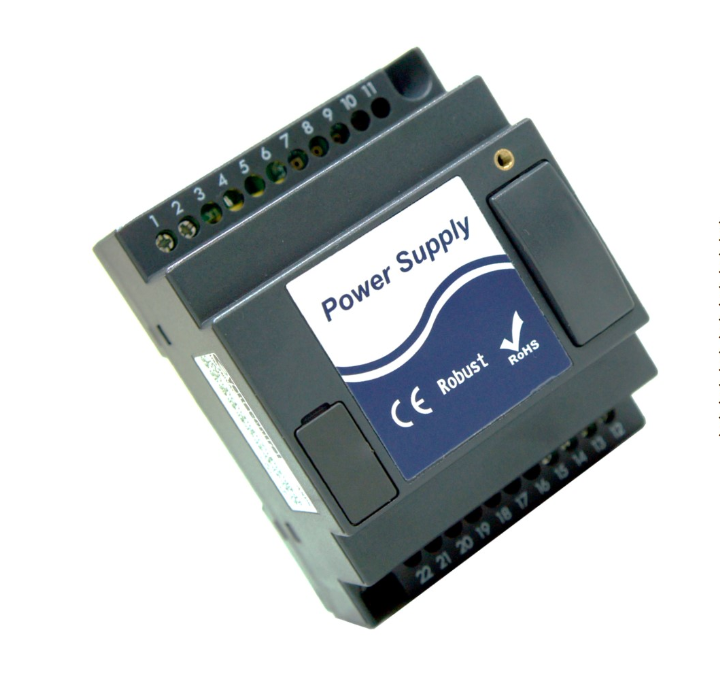

A series Power Supply
SKU: ASPS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
ASPS Power Supply:
ASPS Use with a 24 VDC (2A) output.
All range/universal AC input
Safeguards Overvoltage/Short Circuit
Free-air convection cooling
DC OK active signal built-in.
LED power indication for 100% full load testing.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
48-Watt Power Source
Function One-phase, 100/240 VAC voltage
Support Models: TS/TC, A-1x, A-2x, A-3x, A-5x, A-6x, and A-7x
Temperature range of operation: -10 to +55°C
Protection level: IP20
Installation: flush mounting or 35mm DIN rail
The measurements are 73*90*60.3 mm (W x H x D).
50/60 Hz input frequency.
Fuse: In agreement
OCP: In agreement
OTP: In agreement
Maximum 24 VDC: 2.0 A
Stability of output voltage: -+8%
100Mv is the ripple.
>75% efficiency
Strength LED: In agreement
