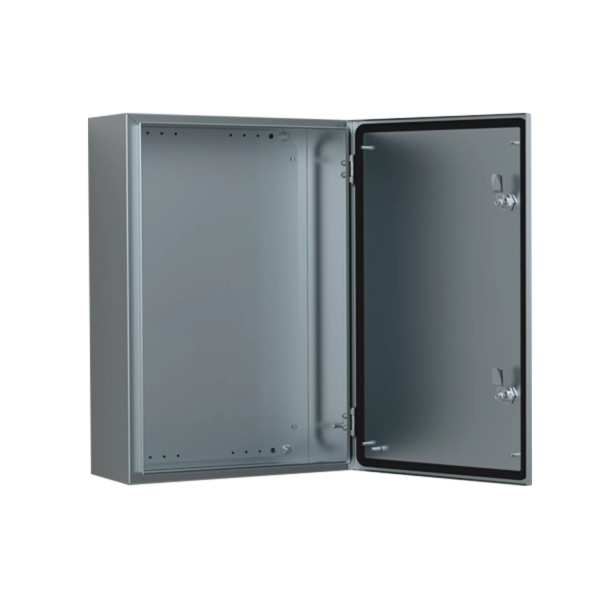

Single door Stainless steel Enclosure ASR0182415
SKU: ASR0182415
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A sturdy wall-mounted enclosure, the Vent Hoffman Single Door Stainless Steel Enclosure ASR0182415 is made to safeguard electrical and electronic components under challenging conditions.
Because it is composed of premium AISI 316L stainless steel, durability and corrosion resistance are guaranteed.
Industries including food and beverage, pharmaceutical, and other demanding environments are perfect for this enclosure.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: AISI 316L pre-grained stainless steel.
Body Thickness: 1.5 mm.
Door Thickness:
AISI 304L: 1.5 mm (2 mm for enclosures with height or width of 600 mm or greater).
AISI 316L: 2 mm.
Mounting Plate: 2 mm galvanized steel.
Dimensions:
Height: 180 mm.
Width: 240 mm.
Depth: 150 mm.
Protection Degree: IP 66.
Industry Standards:
UL 508A Listed; Type 4, 4X, 12.
cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 4, 4X, 12.
NEMA/EEMAC Type 4, 4X, 12.
CSA, File No. 1442951: Type 4, 4X, 12.
IEC 62208.
KEMA, GOST, DNV, CE, Lloyds, Maritime.
Body Construction: Folded and seam welded.
Door: Corner formed in one piece, surface mounted with 130° opening, concealed AISI 304 stainless steel hinges with captive pin, can be mounted for left or right-hand opening.
Sealing:
AISI 304L: Injected polyurethane gasket.
AISI 316L: Injected silicone gasket.
Lock: nVent HOFFMAN customized zamak double-bit 3 mm lock with 90° movement and anti-vibration mechanism.
Mounting Plate Features: Marked vertically at 10 mm intervals, holes for cable fixing, fixed onto M8 press welded studs, strengthened by folded edges for enclosures 800 mm and above.
Cable Access: No gland plate openings to maximize sealing and cleanliness.
Protection Ratings: IP 66, TYPE 4X, 12, IK 10.
Finish: 400 pre-grained stainless steel.
