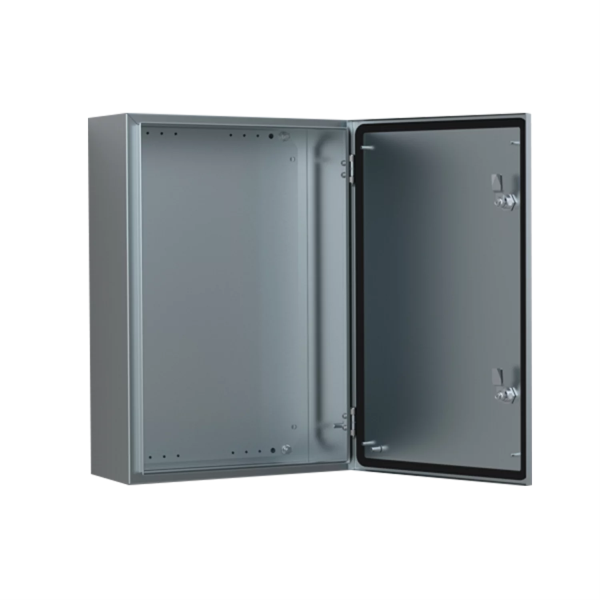

Single door Stainless steel Enclosure ASR0806030
SKU: ASR0806030
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The nVent Hoffman Single Door Stainless Steel Enclosure ASR0806030 is a robust, wall-mounted enclosure designed to protect electrical and electronic components in harsh environments.
Made from high-quality AISI 316L stainless steel, this enclosure offers excellent resistance to corrosion and is suitable for industries such as food and beverage, pharmaceuticals, and other demanding environments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: AISI 304L / AISI 316L pre-grained stainless steel.
Body Thickness: 1.5 mm.
Door Thickness:
AISI 304L: 1.5 mm (2 mm for enclosures with height or width of 600 mm or greater).
AISI 316L: 2 mm.
Mounting Plate: 2 mm galvanized steel.
Dimensions:
Height: 800 mm.
Width: 600 mm.
Depth: 300 mm.
Protection Degree: IP 66.
Industry Standards:
UL 508A Listed; Type 4, 4X, 12.
cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 4, 4X, 12.
NEMA/EEMAC Type 4, 4X, 12.
CSA, File No. 1442951: Type 4, 4X, 12.
IEC 62208.
KEMA, GOST, DNV, CE, Lloyds, Maritime.
Body Construction: Folded and seam welded.
Door: Corner formed in one piece, surface mounted with 130° opening, concealed AISI 304stainless steel hinges with captive pin, can be mounted for left or right-hand opening.
Sealing:
AISI 304L: Injected polyurethane gasket.
AISI 316L: Injected silicone gasket.
Lock: nVent HOFFMAN customized zamak double-bit 3 mm lock with 90° movement and anti-vibration mechanism.
Mounting Plate Features: Marked vertically at 10 mm intervals, holes for cable fixing, fixed onto M8 press welded studs, strengthened by folded edges for enclosures 800 mm and above.
Cable Access: No gland plate openings to maximize sealing and cleanliness.
Protection Ratings: IP 66, TYPE 4X, 12, IK 10.
Finish: 400 pre-grained stainless steel.
