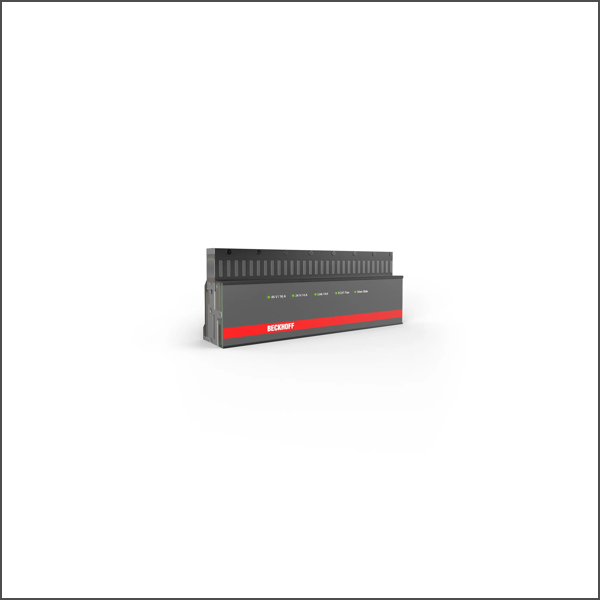

AT2100-0250-0002motor module with integrated NCT functionality, straight (top profile without drilling hole), 48 V DC/24 V DC, 250 mm x 51.7 mm x 96 mm (L x W x H), 2.38 kg, not UL-certified
SKU: AT2100-0250-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Motor type: long stator linear motor segment
Design form: straight
Motor length: 250 mm
Connection method: connectors between the motor modules (daisy chaining)
Length per feed: max. 2 m (voltage supply, EtherCAT)
Cooling: convection
Ambient temperature (operation): 0…+40 °C
Buy currently uses Select Automation shop pricing and checkout.
The AT2100 motor modules are elements for building straight XTS line sections with integrated NCT functionality.
