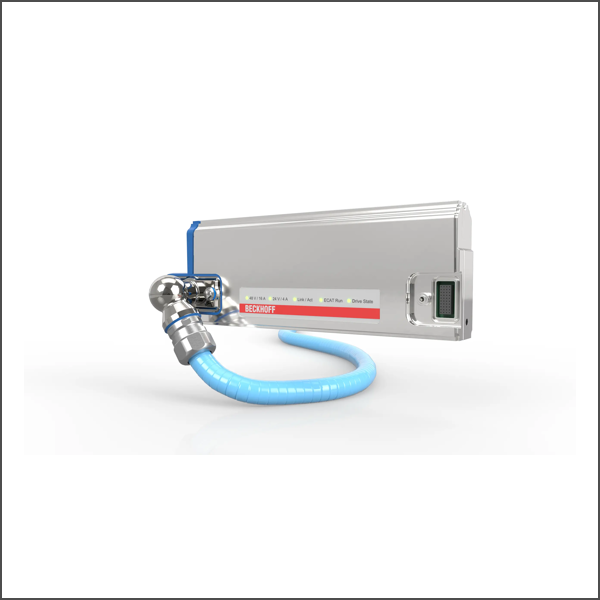

ATH2002-0250-0040 stainless steel motor module with angled feed, straight, 48 V DC/24 V DC, cable length 4 m, protection rating IP69K, 250 mm x 34 mm x 96 mm (L x W x H), 6.8 kg
SKU: ATH2002-0250-0040
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Motor type: long stator linear motor segment
Design form: straight
Motor length: 250 mm
Connection method: cover with angled feed
Material housing: stainless steel 1.4404 AISI 316L; sealing: VMQ silicone
Length per feed: max. 3 m (voltage supply, EtherCAT)
Cooling: convection
Ambient temperature (operation): 0…+40 °C
Buy currently uses Select Automation shop pricing and checkout.
The motor modules with the product designation ATH200x are elements for the construction of straight XTS track sections for demanding environmental conditions.
