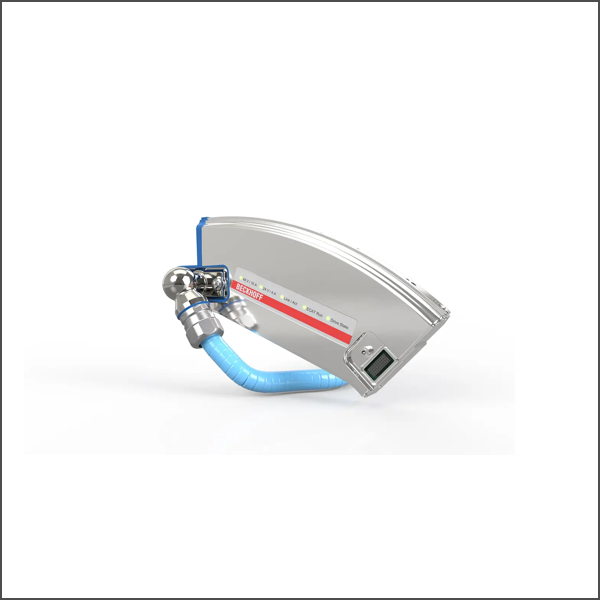

ATH2042-0250-0042 stainless steel motor module with angled feed and cover for guide rail mounting surface, 45° (positive curve, convex, radius constant), 48 V DC/24 V DC, cable length 4 m, protection
SKU: ATH2042-0250-0042
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Motor type: long stator linear motor segment
Design form: curved segment, 45° (positive curve, Ø 637 mm)
Motor length: 250 mm
Connection method: cover with angled feed
Material housing: stainless steel 1.4404 AISI 316L; sealing: VMQ silicone
Length per feed: max. 3 m (voltage supply, EtherCAT)
Cooling: convection
Ambient temperature (operation): 0…+40 °C
Buy currently uses Select Automation shop pricing and checkout.
The motor modules with the product designation ATH204x are elements for the construction of curved XTS track sections for demanding environmental conditions.
