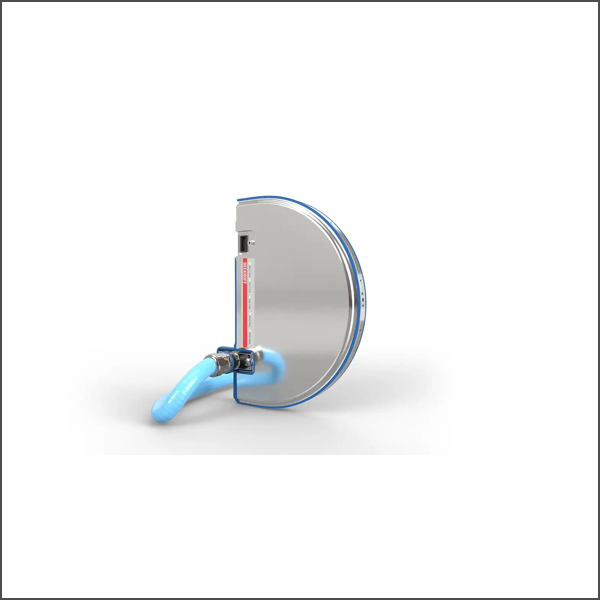

ATH2051-0500-0252 stainless steel motor module with feed and cover for guide rail mounting surface, 180° (clothoid, radius not constant), 48 V DC/24 V DC, cable length 25 m, protection rating IP69K, 3
SKU: ATH2051-0500-0252
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Motor type: long stator linear motor segment
Design form: curved segment, 180° (positive curve, clothoid)
Motor length: 500 mm
Connection method: cover with straight feed
Material housing: stainless steel 1.4404 AISI 316L; sealing: VMQ silicone
Length per feed: max. 3 m (voltage supply, EtherCAT)
Cooling: convection
Ambient temperature (operation): 0…+40 °C
Buy currently uses Select Automation shop pricing and checkout.
The motor modules with the product designation ATH205x are elements for the construction of curved XTS track sections for demanding environmental conditions.
