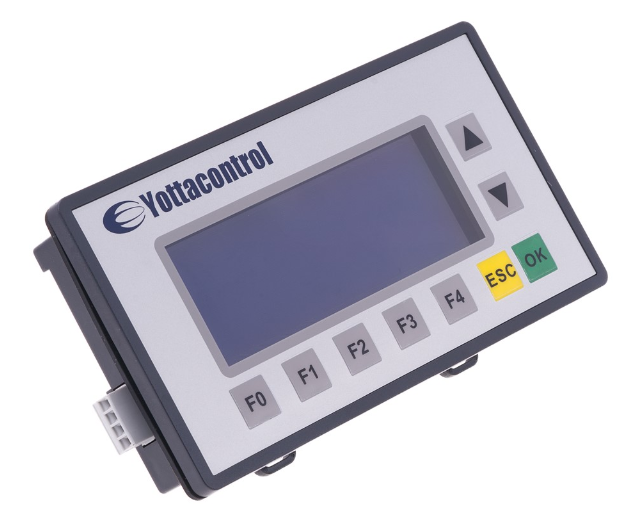

A-5/6 Series Text Panel
SKU: ATP2
Price on request
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
ATP-2 Text Panel:
Use only with Yottacontrol A-51/52/61/62 Series.
Just plug it in and get going.
Multilingual Display and arrangement.
Able to use a controller to alter a parameter.
Upgrade the password and safety feature.
Scroll-in text, diversity patterns, bar charts, indicators, display text, etc.
Built-in function key.
Monitoring in real time using a digital oscilloscope feature.
Help with the startup screen.
The RS-485 interface has a resolution of 192 x 64 pixels, dual watchdog timer protection, EFT, and ESD.
IP65 Defense.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operating voltage: 24 VAC or 10–30 VDC
LCM: 4.3" STN
Adjustable resistor for contrast
Pixel resolution: 192 by 64
LCM lifespan: 50000 hours or more
Luminosity: 60cd/m^2.
Color: Black and White
Five-key function key
The display is 96 by 32 mm.
Function Warmth range: -10 to +55°C
Protection level: IP65 (Font Panel)
Installation: flush mounting or 35 mm DIN rail
The dimensions are 157.9*86.4*28.6 mm (W x H x D mm).
