Process Indicator for Analog Signals AX020
SKU: AX020
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

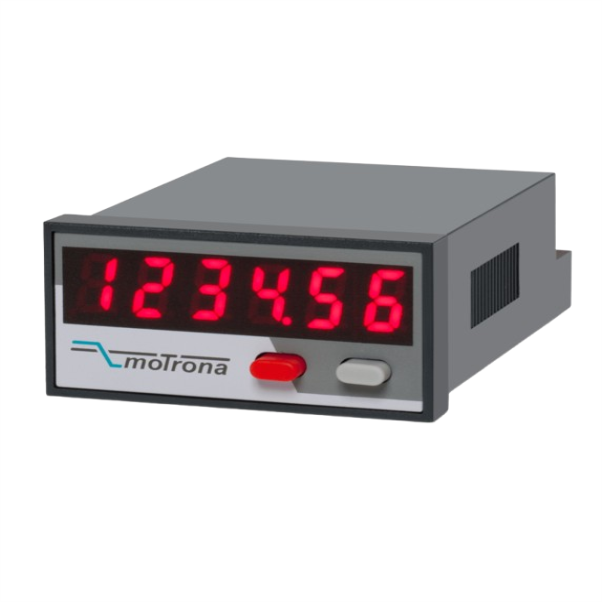

A small, scalable digital display for visualizing analog standard signals is the Motrona AX020 Process Indicator for Analog Signals.
It is perfect for basic configurations or applications in compact control cabinets.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Scalable 14-bit analog input for 0 ... 10 V or 0/4 ... 20 mA.
Power supply 24 VDC.
Miniature norm panel housing.
5 digits LED display with 8 mm height.
Display range -19999 ... 99999, adjustable zero and full-scale value.
Latch input to freeze the display, minimum / maximum record memory.
Easy to set up by only two front keys and menu support.
Delivery includes adapter frame for 50 x 25 mm cut out and label set with dimensions.
Front dimension 48 x 24 x 59 mm (1.89 x 0.945 x 2.322").
