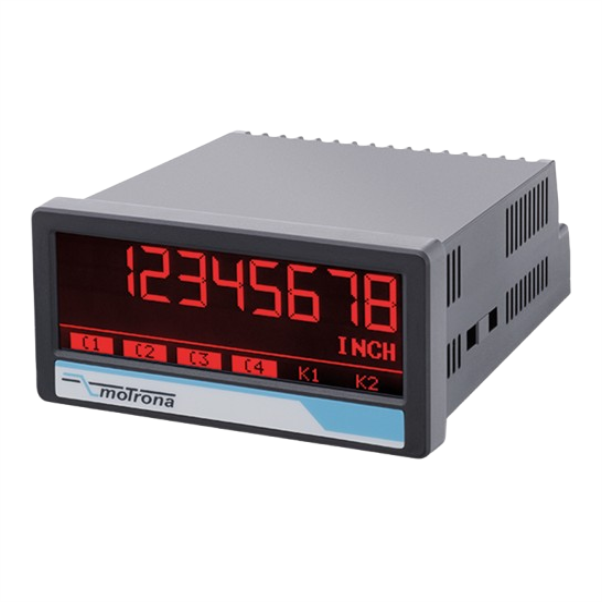

TouchMATRIX® IO-Link Indicator AX350-IO
SKU: AX350-IO
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The touchMATRIX® series' display devices come with a 186 × 64-pixel graphic display by default.
As a result, there are several ways to display plaintext, symbols, and units. The red, green, and yellow visual representation is made possible by the LED backlight display.
These colour modifications can be employed event-dependently (e.g. in case of limit values) because of the intuitive parameterization.
The modular, arbitrarily combinable configuration with analog output, switching outputs, relay, serial interface (Modbus), and 115... 230 VAC demonstrates the highest level of connection and application versatility.
The touchMATRIX® displays are perfect for use in the food industry because of its IP65 and resistive touch panel.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
2 universal 16 bit analog inputs for ±10 V or 0/4 … 20 mA.
3 control inputs for HTL / PNP signals.
Power supply 18 ... 30 VDC.
24 V auxiliary output for encoder supply.
High accuracy reference output 10 V for potentiometers > 1 kOhm.
3.78 x 1.89-inch norm panel housing and IP65 protection.
Bright and high-contrast display with event-dependent colour variations.
Emulation of a 7-segment display inclusively icons and units.
Intuitive and easy parameterization by plain text and touchscreen.
Operating modes for visualization of INPUT 1, INPUT 2 or combinations of IN1 + IN2, IN1 - IN2, IN1 x IN2, IN1: IN2.
Numerous features, e. g. Ttara, filters, averaging.
Linearization with 24 control points.
Option IO (= IO-Link Device):
Data transfer via COM3 (230,4 kBaud).
Cycle times < 3 msec.
Process data IN 32 Byte (6 x process values from AX350):
Analog value 1 (scaled / linearized) and unit.
Analog value 2 (scaled / linearized) and unit.
Analog value 1 (scaled / linearized) with totalisation and unit.
Analog value 2 (scaled / linearized) with totalisation and unit.
Shortcut analog value 1 (scaled / linearized) with analog value 2 (scaled / linearized) and unit.
Shortcut totalisator analog value 1 (scaled / linearized) with totalisator analog value 2 (scaled / linearized) and unit.
Process data Out 8 Byte (2 x IO-Link process values to AX350):
IOL process value Out 1 with scaling, adjustable decimal point and programmable units.
IOL process values Out 2 with scaling, adjustable decimal point and programmable units.
