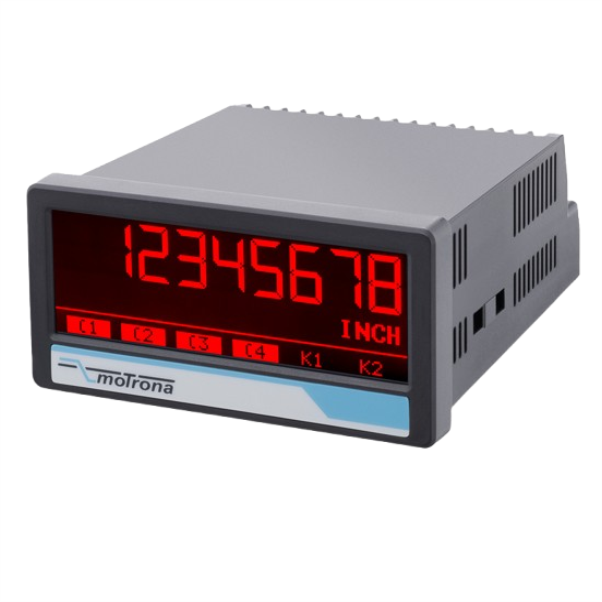

      Process Indicator with two 16 bit Analog Inputs AX350

      SKU: AX350

      Out of stock

      Availability: Out of Stock

      Short Description
      Pricing available on request Description: The touchMATRIX® series' display devices come with an 186 × 64-pixel graphic display by default. As a result, there are several ways to display plaintext, symbols, and units. The red, green, and yellow visual representation is made possible by the LED backlight display. These colour modifications can be employed event-dependently (e.g. in case of limit values) because of the intuitive parameterization. The modular, arbitrarily combinable configuration with analog output, switching outputs, relay, serial interface (Modbus), and 115... 230 VAC demonstrates the highest level of connection and application versatility. The touchMATRIX® displays are perfect for use in the food industry because of its IP65 and resistive touch panel.
      AX350
      Alternative image 1
      Specifications: 2 universal 16-bit analogue inputs for ±10 V or 0/4 … 20 mA. 3 control inputs for HTL / PNP signals. Power supply 18 ... 30 VDC. 24 V auxiliary output for encoder supply. High accuracy reference output 10 V for potentiometers > 1 kOhm. 3.78 x 1.89-inch norm panel housing and IP65 protection. Bright and high-contrast display with event-dependent colour variations. Emulation of a 7-segment display inclusively icons and units. Intuitive and easy parameterization by plain text and touchscreen. Operating modes for visualization of INPUT 1, INPUT 2 or combinations of IN1 + IN2, IN1 - IN2, IN1 x IN2, IN1: IN2. Numerous features, e. g. tara, filters, averaging. Linearization with 24 control points. Options: Option AC: Power supply 115 ... 230 VAC. Option AO: 16-bit analog output, 4 control outputs, serial RS232 interface. Option AR: 16-bit analog output, 4 control outputs, serial RS485 interface. Option CO: 4 control outputs, serial RS232 interface. Option CR: 4 control outputs, serial RS485 interface. Option RL: 2 relay outputs. Option IO: IO-Link Device V1.1.
