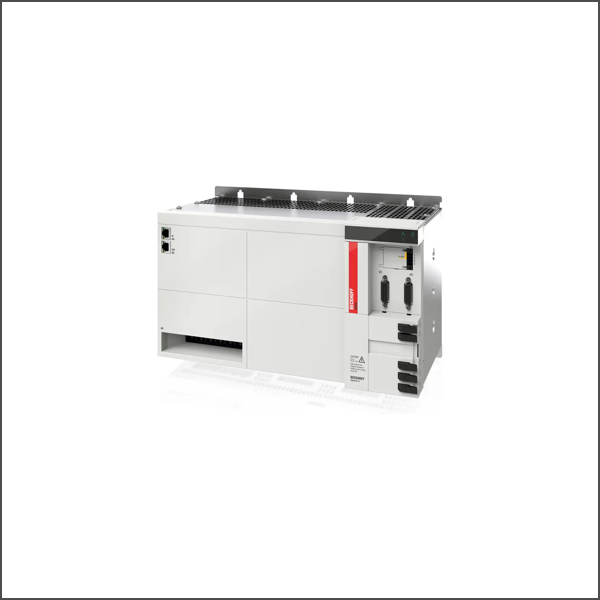

Combined power supply and axis module AX8540-0100-0000

Function: combined power supply and axis module with TwinSAFE Logic Channels: 1 Rated supply voltage: 3 x 200…480 V AC DC link voltage: max. 848 V DC DC link output current: 80 A DC Rated output current (channel): 40 A Peak output current (channel): 80 A Feedback: OCT System bus: EtherCAT Drive profile: CiA402 according to IEC 61800-7-201 (CoE) Realization STO: by local TwinSAFE Logic, via FSoE or hard-wired via safe inputs Safe stop functions: Safe Torque Off (STO), Safe Stop 1 (SS1) Safety standard: EN ISO 13849-1: 2015 (Cat 4, PL e), EN 61508: 2010 (SIL 3) and EN 62061: 2005 + A1: 2013/A2: 2015 (SIL CL3) Ambient temperature (operation): 0…+40 °C, up to +55 °C with power reduction (see documentation) Approvals/markings: CE, cULus, EAC Protection rating: IP20 Width: 360 mm Height without connectors: 230 mm Depth without connectors: 192 mm Width: 360 mm
