UNINTERRUPTED POWER SUPPLY
SKU: BAT120
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

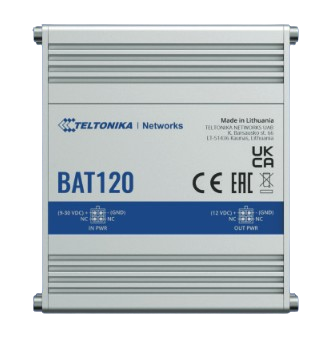

Teltonika Networks' first continuous power supply is the BAT120.
Two 4-pin DC connectors are available for power input and output on the BAT120.
When powered by a battery, the input voltage can vary from 9V to 30V, and the output voltage is 12VDC.
The BAT120 serves as a continuous power supply, supplying two 18650 Li-Io cells with sufficient power to run a compatible Teltonika Networks device for up to six hours.
The safety features of the BAT120 include 3A overcurrent protection for the output, reverse and overvoltage protection for the input.
Applications needing uninterrupted power from Teltonika Networks devices continuously, even in the event of power fluctuations or outages, are ideal for this sturdy and dependable power source.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Connector: 4-pin industrial DC power socket.
Input power/max charging current: Charger: max 4 W/300 mA (max battery charging current).
Input protection: Reverse polarity protection, Overvoltage protection.
Output voltage in passthrough mode: 9 - 30 VDC.
Output voltage in battery mode: 12 VDC.
Output protection: 3A overcurrent protection.
Max output power/current in battery mode: 22 W/1.8 A.
Battery capacity: 2300 mAh (17 Wh).
