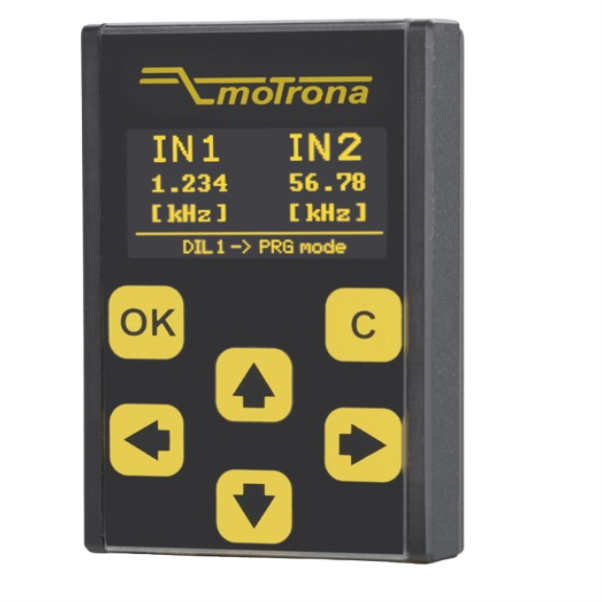

Plug-in Display BG230
SKU: BG230
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
An optional add-on for Motrona safety devices, namely those in the DS230 to DS246 series, is the Motrona BG230 Plug-in Display and Programming Unit.
To ensure a permanent and vibration-proof connection, this unit is easily placed on the front of the DS safety device and fastened with a neodymium power magnet.
The main functions of the BG230 are diagnostic and visualization, particularly in situations where a PC is unavailable.
Additionally, it permits speed monitors to be parameterized, allowing users to modify, store, and move parameters between devices using a copy-paste feature.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display: 1.54" OLED Display (128 x 64 pixels).
Dimensions: 50 x 80 x 15 mm (1.97 x 3.15 x 0.59 inches).
Functions:
Dual channel frequency indicator.
Individual scalable process or speed indicator.
Visualization of alarm and error codes.
Touchscreen with intuitive menu guidance.
Compatibility: Compatible with all DS models.
Mounting: Fixed permanently and vibration-proofed by a neodymium power magnet.
