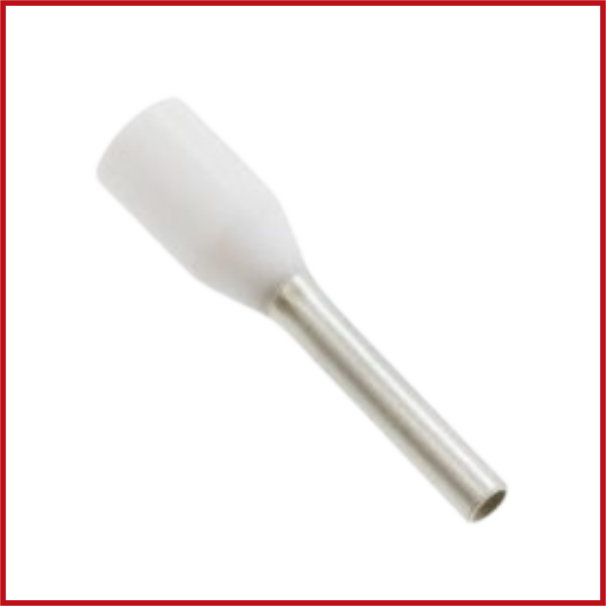

Bootlace - H0.5 / 14D W 9019010000 (50 Pcs)
SKU: BOT-0001-H05
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The H0.5/14D W 9019010000 is an insulated bootlace ferrule used to terminate 0.5mm² flexible wires.
It has a tinned copper sleeve with a polypropylene insulating collar, which provides a clean and secure termination while also protecting stripped wire strands.
The ferrule is crimped to the conductor and is appropriate for usage in terminal blocks, control panels, and electrical wire applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Bootlace Ferrule / Wire-End Ferrule.
Type: H0.5/14D W.
TME Designation: H0.5/14D/WH.
Wire Cross-Section: 0.5mm².
Equivalent Conductor Size: 20 AWG.
Ferrule Length: 14mm.
Metal Sleeve Length: 8mm.
Stripping Length: 10mm.
Contact Material: Copper.
Contact Plating: Tin-Plated.
Insulation Material: Polypropylene.
Collar Colour: White.
Contact Surface Diameter: 1mm.
Collar Diameter: 2.6mm.
Metal Sleeve Thickness: 0.15mm.
Plastic Collar Thickness: 0.25mm.
Mounting Method: Crimp.
Operating Temperature: Up to 105°C.
Quantity: 50 Pieces.
