LM2596 DC-DC Voltage Regulator Adjustable Step Down Power Supply Module with Display
SKU: BRD-0036-H14
Sold by Select Automation
Final price R 45.83
R 39.85 excl. VAT
Availability: In Stock (37 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

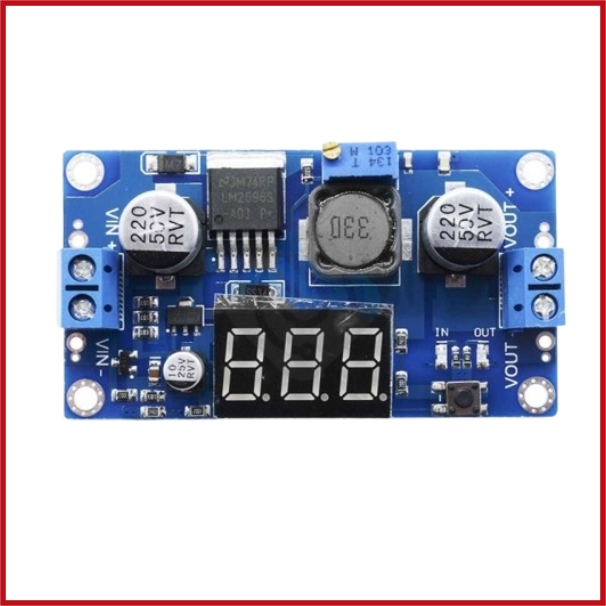

The LM2596 DC-DC Adjustable Step-Down Power Supply Module with Display is a high-efficiency buck converter module designed to convert a higher DC input voltage into a lower adjustable DC output voltage.
Built around the reliable LM2596 switching regulator IC, this module delivers stable voltage regulation with low power loss and excellent conversion efficiency.
Featuring an integrated digital voltage display, the module allows convenient real-time monitoring of input or output voltage, making voltage adjustment quick and precise.
Buy currently uses Select Automation shop pricing and checkout.
Spesifcations:
Product Type: DC-DC Step-Down (Buck) Converter.
IC Model: LM2596.
Converter Type: Non-Isolated Buck Converter.
Input Voltage Range: 4V – 40V DC.
Output Voltage Range: 1.25V – 37V DC (Adjustable).
Maximum Output Current: 3A.
Recommended Continuous Current: 2A.
Efficiency: Up to 92%.
Switching Frequency: 150 kHz.
Voltmeter Range: 0V – 40V.
Display Accuracy: ±0.1V.
Output Ripple: ~30–100mV.
Operating Temperature: -40°C to +85°C.
Dimensions: 66 × 36 × 12 mm.
