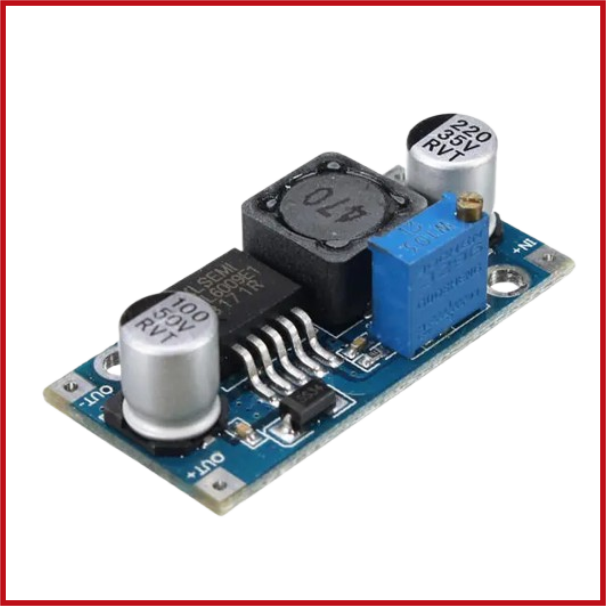

4A XL6009E1 Adjustable Step Up Boost Converter
SKU: BRD-0037-H14
Sold by Select Automation
Final price R 43.25
R 37.61 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 4A XL6009E1 Adjustable Step-Up Boost Converter is a high-efficiency DC-DC boost power module designed to increase a lower DC input voltage to a higher adjustable output voltage.
Built around the reliable XL6009E1 switching regulator IC, this module provides stable voltage conversion with excellent efficiency, making it ideal for power supply, battery-powered systems, and electronic development projects.
With adjustable output voltage and a compact design, the converter is widely used in DIY electronics, embedded systems, automotive applications, and industrial control systems where reliable voltage boosting is required.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: DC-DC Step-Up (Boost) Converter.
IC Model: XL6009E1.
Converter Type: Non-Isolated Boost Converter.
Input Voltage Range: 3V – 32V DC.
Output Voltage Range: 5V – 35V DC.
Maximum Current: 4A.
Recommended Continuous Current: 2A – 3A.
Switching Frequency: 400 kHz.
Efficiency: Up to 94%.
Output Ripple: ~50Mv.
Voltage Regulation: ±0.5%.
Load Regulation: ±0.5%.
Operating Temperature: -40°C to +85°C.
