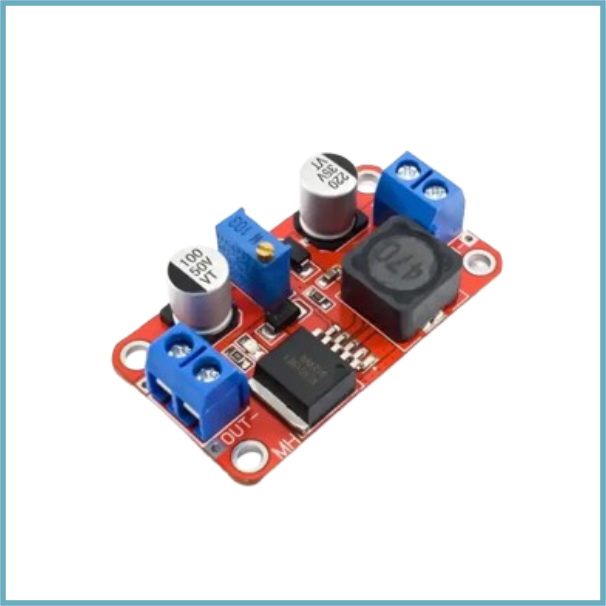

DC-DC Boost Converter – XL6019 - Dimensions: ~(50mm x 28mm x 13mm)
SKU: BRD-0039-H14
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The XL6019 Boost Converter is a high-efficiency, step-up DC-DC converter module that boosts input voltage to produce a higher, regulated output.
It is ideal for powering devices that demand more voltage than the source can supply, such as LED strips, battery-powered systems, and embedded electronics.
This module employs the XL6019 chip, which provides boost, buck-boost, and inverting modes.
It includes an N-channel MOSFET and a fixed frequency oscillator for steady performance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Switching Control IC: XLSemi XL6019.
Input Voltage Range: 3.0 – 35VDC.
Output Voltage Range: 5.0 – 40VDC.
Max Output Current: 5A.
Conversion Efficiency: Up to 94%.
Operating Frequency: 180kHz.
Output Ripple Voltage: < 100mV.
Load Regulation: ±0.5%.
Operating Temperature: -45 to +85°C.
Built-in Protection: Input Reverse Polarity Protection, Output Short Circuit; Over Temperature.
Indicator LEDs: Red power LED.
Dimensions: 50mm x 28mm x 13mm.
