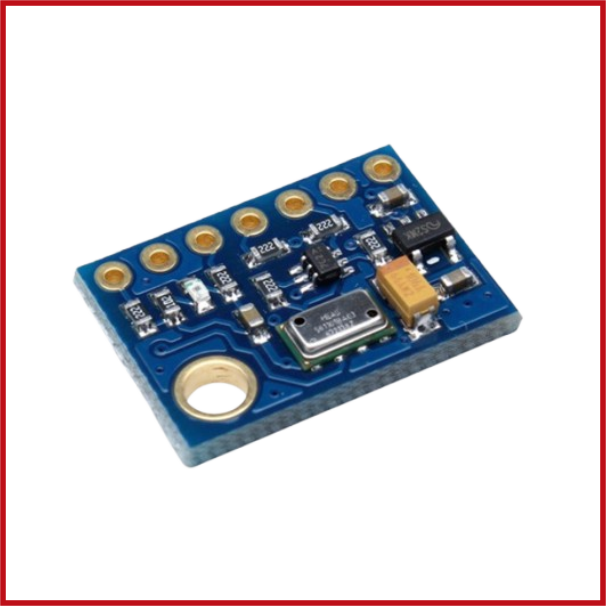

MS5611 High-Resolution Barometric Pressure & Temperature Sensor Module (I²C/SPI)
SKU: BRD-0044-H14
Sold by Select Automation
Final price R 142.60
R 124.00 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The MS5611 High-Resolution Barometric Pressure Sensor Module is a precise digital pressure and temperature sensor that measures altitude, ambient pressure, and temperature.
It is based on the TE Connectivity MS5611-01BA03 sensor, which has outstanding resolution and low power consumption, making it perfect for drones, UAVs, weather stations, altimeters, GPS navigation, robotics, and embedded systems.
The module connects to Arduino, Raspberry Pi, ESP32, STM32, and other microcontroller platforms using I²C or SPI.
The MS5611 has a high-resolution 24-bit ADC with factory-calibrated coefficients stored in PROM, allowing for steady and precise measurements across a wide operating range.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Barometric Pressure & Temperature Sensor Module.
Sensor IC: TE Connectivity MS5611-01BA03.
Pressure Measurement Range: 10–1200 mbar.
Pressure Resolution: Up to 0.012 mbar.
Altitude Resolution: 10 cm.
Temperature Measurement Range: -40°C to +85°C.
Pressure Accuracy: ±1.5 mbar.
ADC Resolution: 24-bit.
Communication Interface: I²C and SPI.
Operating Voltage (Sensor): 1.8V–3.6V DC.
Module Supply Voltage: 3.3V–5V DC.
Current Consumption: 1.4 µA (standby), 12.5 µA (active).
Factory Calibration: 6 calibration coefficients stored in internal PROM.
Operating Temperature: -40°C to +85°C.
