Micro Switch 2 Pin SMD Tactile Push Button
SKU: BUT-0003-D12
Sold by Select Automation
Final price R 2.94
R 2.56 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description

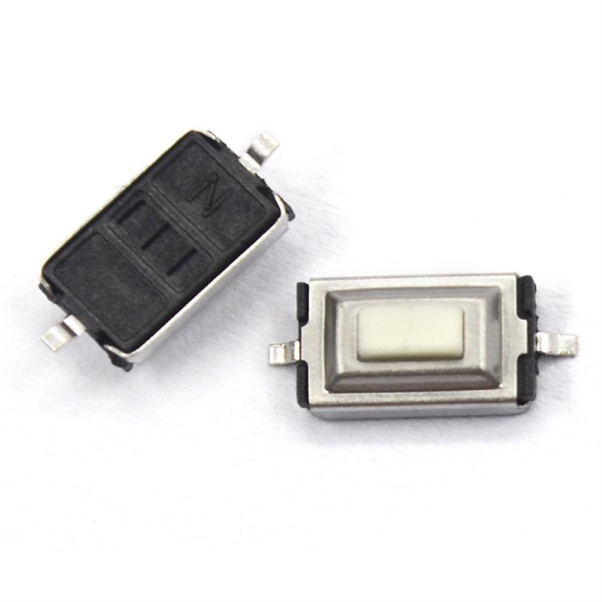

Description: SMD Tactile micro push button.
This push button is a Micro Switch.
Total pins: 2
This is a small, surface-mount momentary tactile switch with two pins that is widely used in consumer electronics, embedded systems, and DIY projects.
It is appropriate for usage in reset buttons, human input controls, and microcontroller interfaces.
Pressing activates the switch, which returns to its original condition when released.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Switch Type: Tactile, SPST (Momentary ON).
Mounting Style: SMD.
Size: 3mm (W) × 6mm (L) × 2.5mm (H).
Operating Voltage & Current: 12V DC @ 50mA.
Operation Force: 1.56.
Operation Stroke: 0.25mm.
Bounce Time: ≤ 10 ms.
Contact Resistance: ≤ 100 mΩ.
Electrical Life: 300,000 cycles.
Operating Temperature: -20°C to +70°C.
