Speed ratio adjustable by keypad
SKU: BY340
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

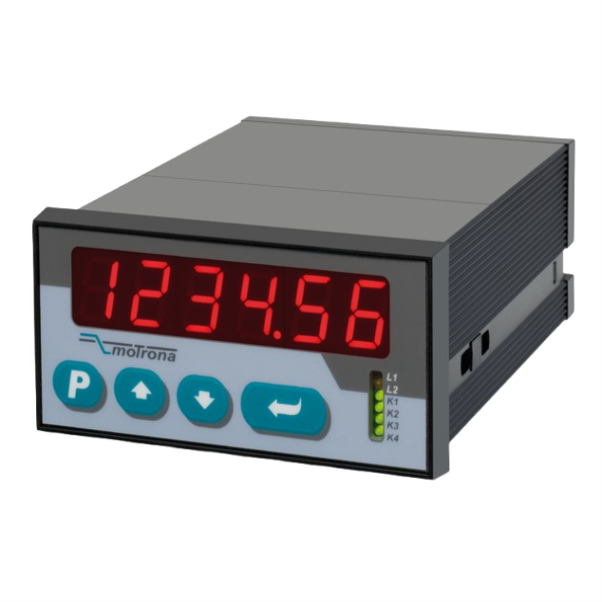

For accurate synchronization of a single follower axis in a variety of industrial applications, the Motrona BY340 Synchronous Controller was created.
Because of its excellent performance and affordability, this little controller is perfect for machines and small panel installations.
The BY340 is appropriate for use with speed-controlled drives that need precise control characteristics because it enables precise angular and positional synchronization.
With a keypad for modifying the speed ratio and several capabilities, such as trimming and indexing for changing the relative positions between axes, it has an easy-to-use interface.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse Inputs: 2 pulse inputs with format A, B, 90° [HTL] or A, /A, B, /B [RS422].
Control Inputs: 4 control inputs for HTL / PNP / NPN / Namur signals [10 ... 30 VDC].
Input Frequency: Up to 300 kHz.
Transistor Outputs: 4 fast transistor outputs, push-pull, short-circuit-proof [5 ... 30 VDC].
Analog Output: 1 scalable 14-bit analog output (±10 V or 0/4 ... 20 mA).
Loop Time: Approximately 250 µs.
Power Supply: 24 VAC and 17 ... 40 VDC.
Housing: Compact norm panel housing (96 x 48 x 140 mm) according to EN 60715.
Mounting: Top hat rail mounting using SM300 support brackets (optional).
Setup: Via keys or PC using the serial RS232 interface.
PROFIBUS Connection: Available via Motrona gateway PB251.
