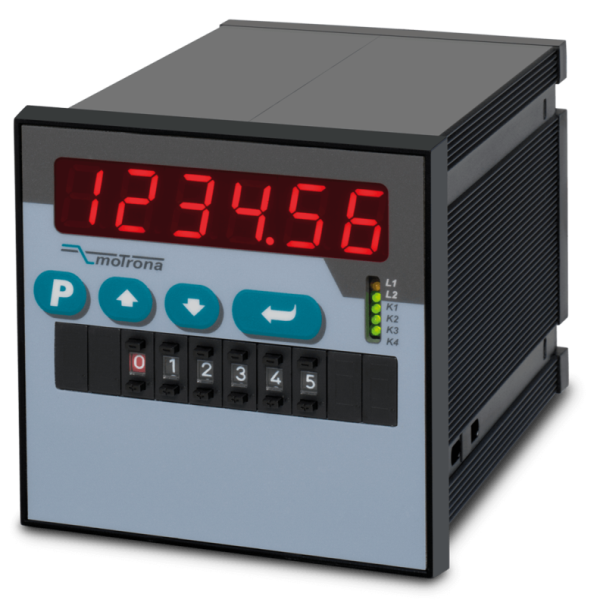

Master - Slave Synchronizers with 4 Relays
SKU: BY641
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The BY641 synchronous control system is especially well-suited for control applications on smaller machines and systems with limited funds. It comes in an installation housing of 96 x 96 x 140 mm (3.78 x 3.78 x 5.51").
The BY641 variant's bigger design (along with the keyboard) enables a front BCD decade switch to directly modify the speed ratio.
Additionally, this device features a 14-bit analog output (± 10 V or 0/4... 20 mA), four potential-free changeover output relays, four programmable limit values for transistor switching outputs, and a serial RS232 interface.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
2 pulse inputs with format A, B, 90° [HTL].
or A, /A, B, /B [RS422].
4 control inputs for HTL / PNP / NPN / Namur signals.
[10 ... 30 VDC].
Input frequency up to 300 kHz.
4 fast transistor outputs, push-pull, short-circuit-proof.
[5 … 30 VDC].
4 potential-free changeover relay outputs.
1 scalable 14-bit analog output.
(±10 V or 0/4 … 20 mA).
Loop time approx. 250 µs.
Power supply 24 VAC and 17 … 40 VDC.
Compact norm panel housing (according to EN 60715).
Top hat rail mounting by using SM600 support brackets (option).
Setup via keys or via PC by serial RS232 interface.
PROFIBUS connection via motrona gateway PB251.
