Synchronization of Drives Firmware BY701
SKU: BY701
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Applications requiring variable ratio (electronic transmission) or angle-synchronous synchronization of drives (electronic shaft) can benefit from the BY701 firmware.
In all synchronous phases, the maximum precision is guaranteed by clever calculation algorithms and a brief position control (< 1 ms).
An MC700 controller can function on up to four axes.
Both during operation and at standstill, excellent functions for adjusting phase position and synchronous ratios are accessible.
Signals from index and print marks can also be assessed.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:

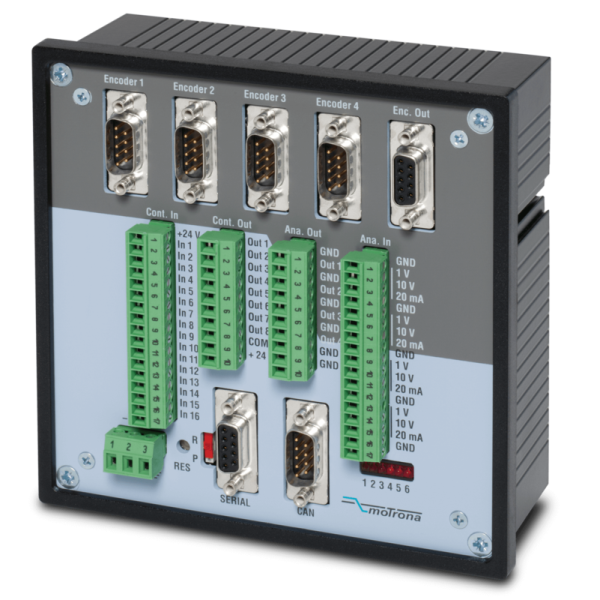

Any motion control function can be assigned to the MC700, a universal motion controller with one to four axes, by loading a firmware.
This controller provides outstanding synchronous features for 1–4 axes when used in conjunction with the firmware BY701 (see firmware).
All possible options for drive synchronization are provided by the firmware, including the impact of relative drive position and phase position as well as a variety of index and print mark functions.
A "physical master" or the integrated "virtual master axis" with ramps and programmed speeds can be utilized as the master drive, if desired.
With a cascading output, the number of subsequent axes can be increased indefinitely.
An external control terminal, serial interface, or optional CANBUS (MC700/CI) can be used to run MC700 controllers. Included is PC operator software.
A PROFIBUS connection can be established through gateway PB251.
