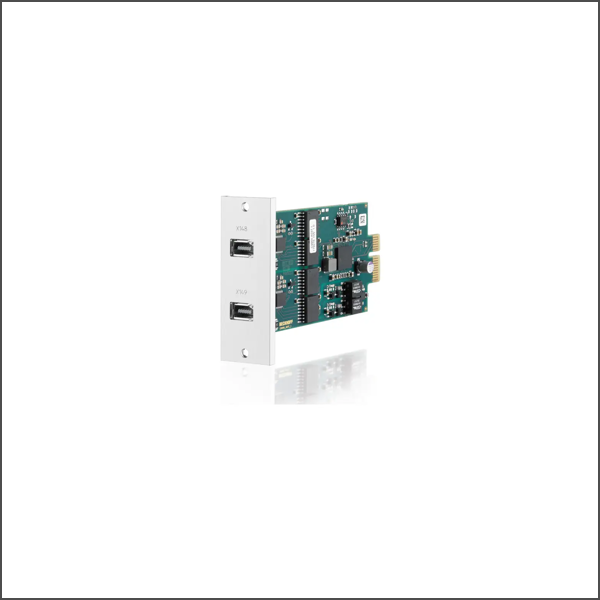

RS232 PCIe module, 2 channels C9900-E301
SKU: C9900-E301
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Interfaces: 2 x RS232
Transmission rate: up to 921,600 bps
Internal structure: 2 sockets ix type B
Additional information: requires 2 adapter cables C9900-K920 ix type B to D-sub 9-pin
Buy currently uses Select Automation shop pricing and checkout.
PCIe modules from Beckhoff are highly integrated PCI Express plug-in cards that respond to the current trend towards increasingly smaller PC devices.
The C9900-E301 PCIe module can be used to complement Industrial PCs with Beckhoff PCIe module slot by two serial RS232 interfaces. Due to the small dimensions of the module, two ix type B connectors are integrated into the front plate of the PCIe modules instead of the D-sub connectors commonly used with RS232. For adaptation to 9-pin D-sub connectors, the C9900-K920 adapter cable is available.
