push-button extension for CP2x16 15.6" landscape C9900-G004
SKU: C9900-G004
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Type: Push-button extension for built-in multi-touch panels
Labels: for push-button caps for individual marking of each push-button
Key type: push-button keys with signal lamp, type RAFI RAFIX 22FS+, round, 30 mm
Emergency stop key: 1 emergency stop key, type RAFI RAFIX 22FS+
Push-button position: horizontal push-button extension below
Communication: – each push-buttons 1 switch contact via USB, 1 switch contact via terminal strip
– break contacts of the emergency stop button via terminal strip
– signal lamp via USB
Connection: cables routing through M20 cable gland
Further operating elements: selector switches and keylock switches as well as other elements from the series RAFIX 22FS+ are available via CP configurator
Buy currently uses Select Automation shop pricing and checkout.

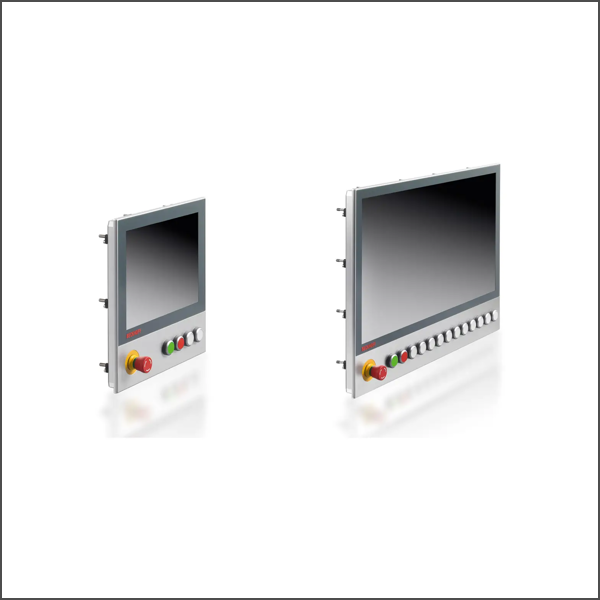

The CP2xxx horizontal multi-touch panels are extended by an emergency stop button and up to 13 illuminated push buttons with the C9900-G00x push button extensions.
The push button extensions can be ordered ex factory for the display sizes 12, 12.1, 15, 15.6, 18.5, 19, 21.5, and 24 inch.
The C9900-G00x push button extensions can be wired via USB or a terminal strip. Labels for the push button caps are optionally available for the individual labeling of each button.
The push button extension can be individually adapted already from quantity 1. The CP configurator is available online for this purpose. The ordering options generated after the selection can be coordinated with the responsible sales representative.
