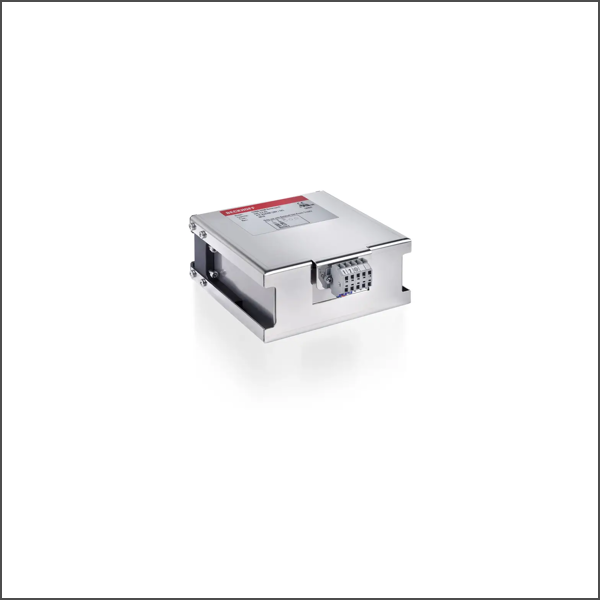

Battery pack for PCs with 24 V power supply with intergrated UPS, 3.4 Ah C9900-U330
SKU: C9900-U330
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
All Industrial PCs can be equipped with a 24 V power supply unit and an integrated UPS. The UPS supplies the PC with power if the mains power fails. This allows data to be saved on the hard disk or Flash, after which the PC can be shut down properly. A battery pack, which serves as the energy storage device, is mounted on a DIN rail outside the PC.
Rated at 3.4 Ah, the maintenance-free C9900-U330 24 V battery pack offers a very high nominal capacity in a compact package
Buy currently uses Select Automation shop pricing and checkout.
Housing: metal housing for mounting on norm rail TS35x15 2.3
Nominal capacity: 3.4 Ah (20 h discharge)
Nominal voltage: 24 V
Internal structure: two 12 V batteries in series connection
Fuse: 9 A by PTC element
Maintenance: maintenance-free
Dimensions (W x H x D): 157 mm x 70 mm x 175 mm
Operating temperature: 0…+50 °C
Additional information: VRLA AGM Technology = valve regulated lead acid batteries with glass fiber mat inside the separator (VRLA = valve regulated lead acid, AGM = absorbed glass mat technology)
