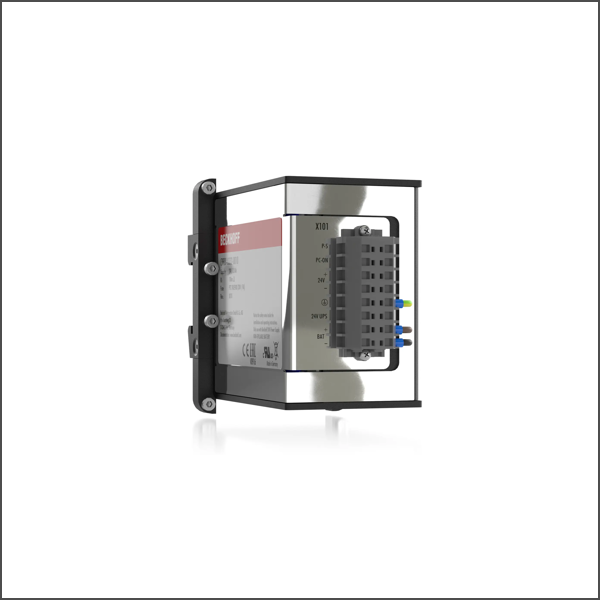

Battery pack for PCs with 24 V power supply with intergrated UPS, 1.2 Ah C9900-U332
SKU: C9900-U332
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
All Industrial PCs can be equipped with a 24 V power supply unit and an integrated UPS. The UPS supplies the PC with power if the mains power fails. This allows data to be saved on the hard disk or Flash, after which the PC can be shut down properly. A battery pack, which serves as the energy storage device, is mounted on a DIN rail outside the PC.
With its rated capacity of 1.2 Ah, the very compact 24 V C9900-U332 battery pack is designed for PCs with Intel Atom® or Intel® Celeron® ULV 827E.
Buy currently uses Select Automation shop pricing and checkout.
Housing: metal housing for mounting on norm rail TS35x15 2.3
Nominal capacity: 1.2 Ah (20 h discharge)
Nominal voltage: 24 V
Internal structure: two 12 V batteries in series connection
Fuse: 9 A by PTC element
Maintenance: maintenance-free
Dimensions (W x H x D): 68.7 mm x 106.6 mm x 143.8 mm
Operating temperature: 0…+50 °C
Additional information: VRLA AGM Technology = valve regulated lead acid batteries with glass fiber mat inside the separator (VRLA = valve regulated lead acid, AGM = absorbed glass mat technology)
